Super Strong Singal Baofeng UV-860 Dual Band Handheld Radio

Original price was: $59.00.Current price is: $39.00.

+ Free Shipping

Super Strong Singal Baofeng UV-860 Dual Band Handheld Radio

 NEW Baofeng UV-860 Two Way Radio 136-174/400-520Mhz Pofung bf-uv860 Ham cb Radio Walkie Talkie

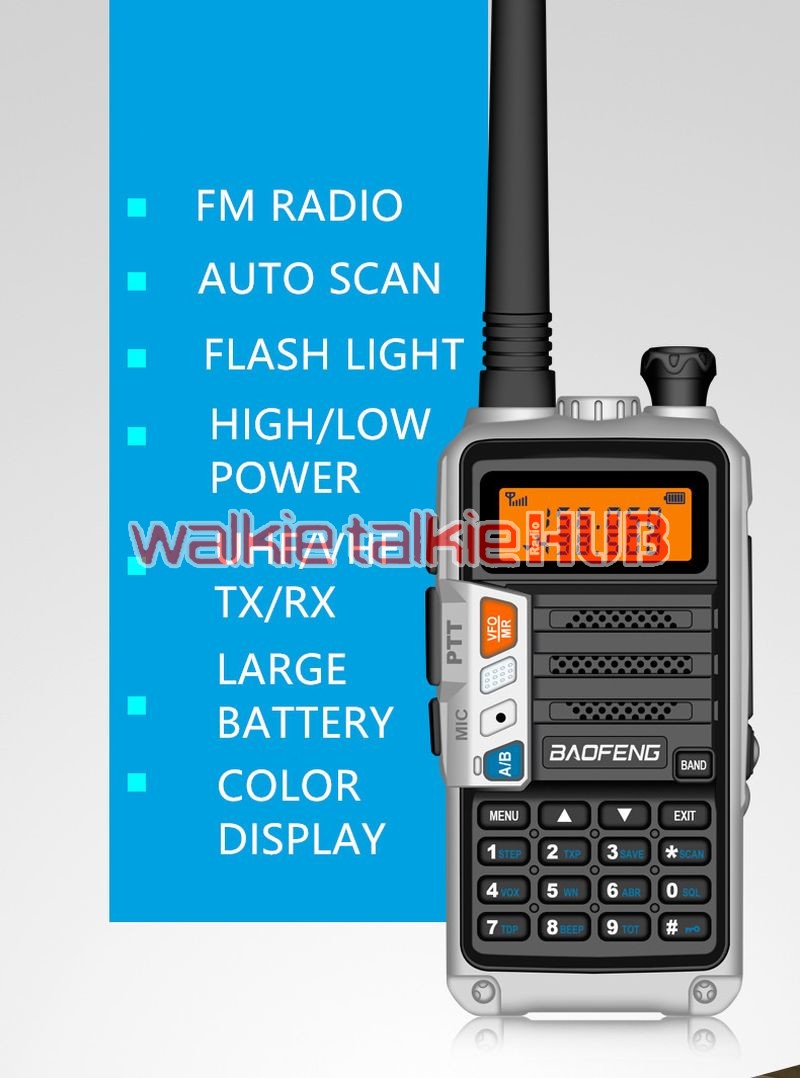

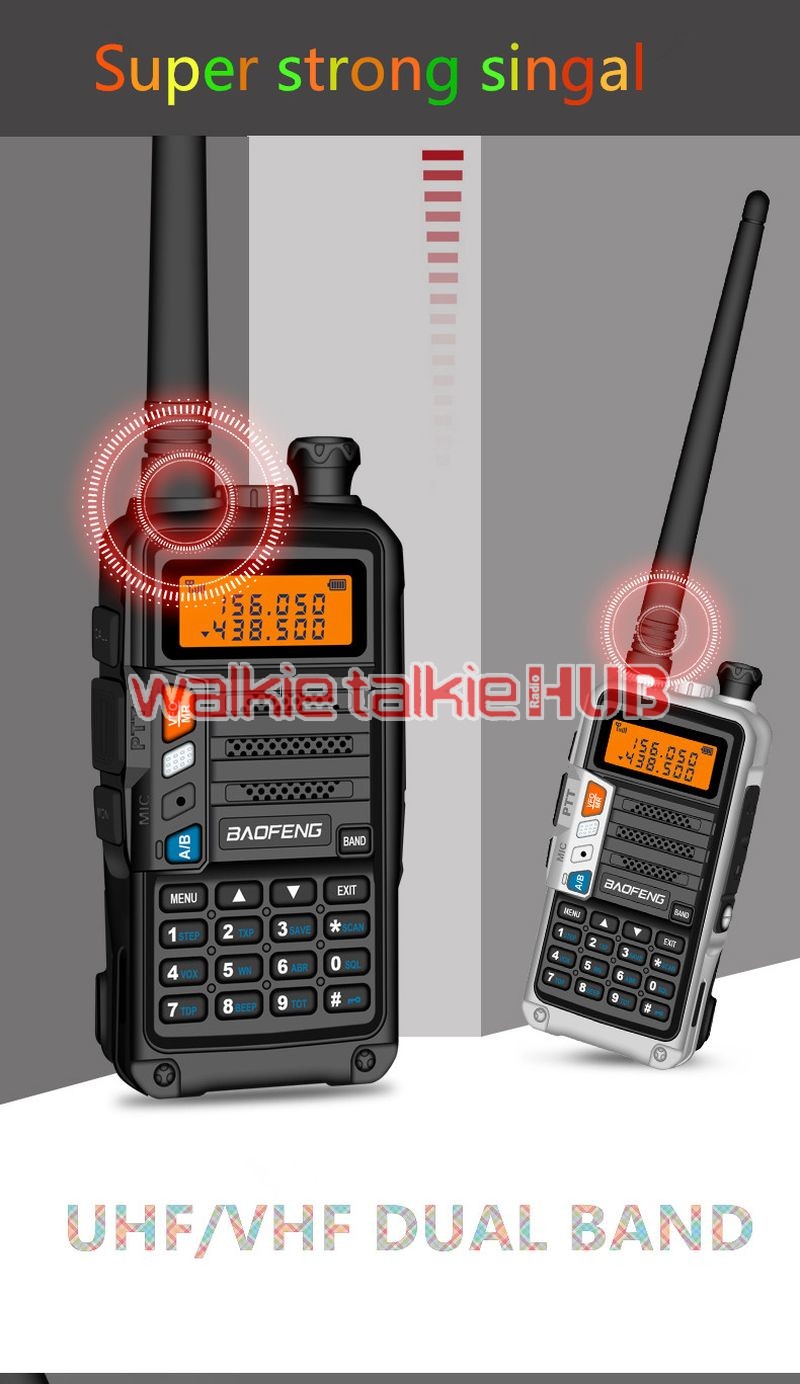

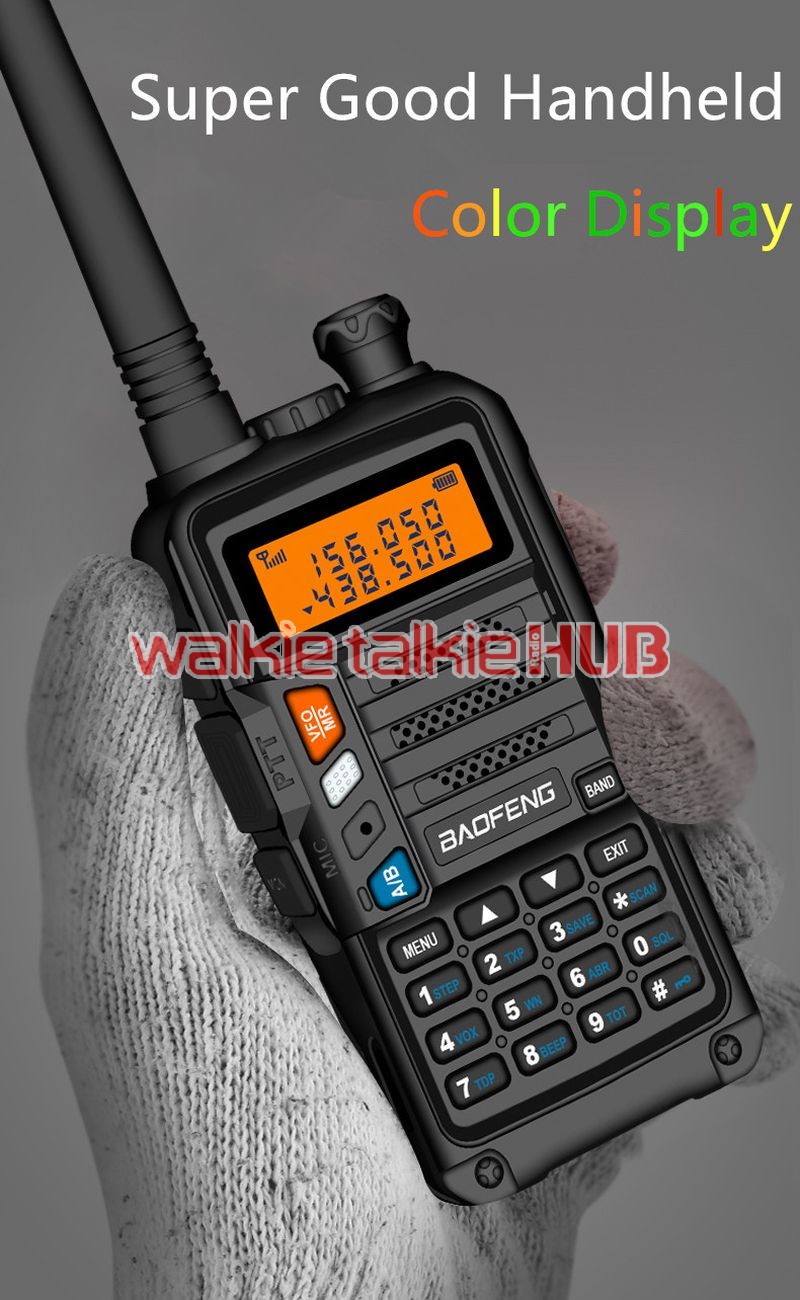

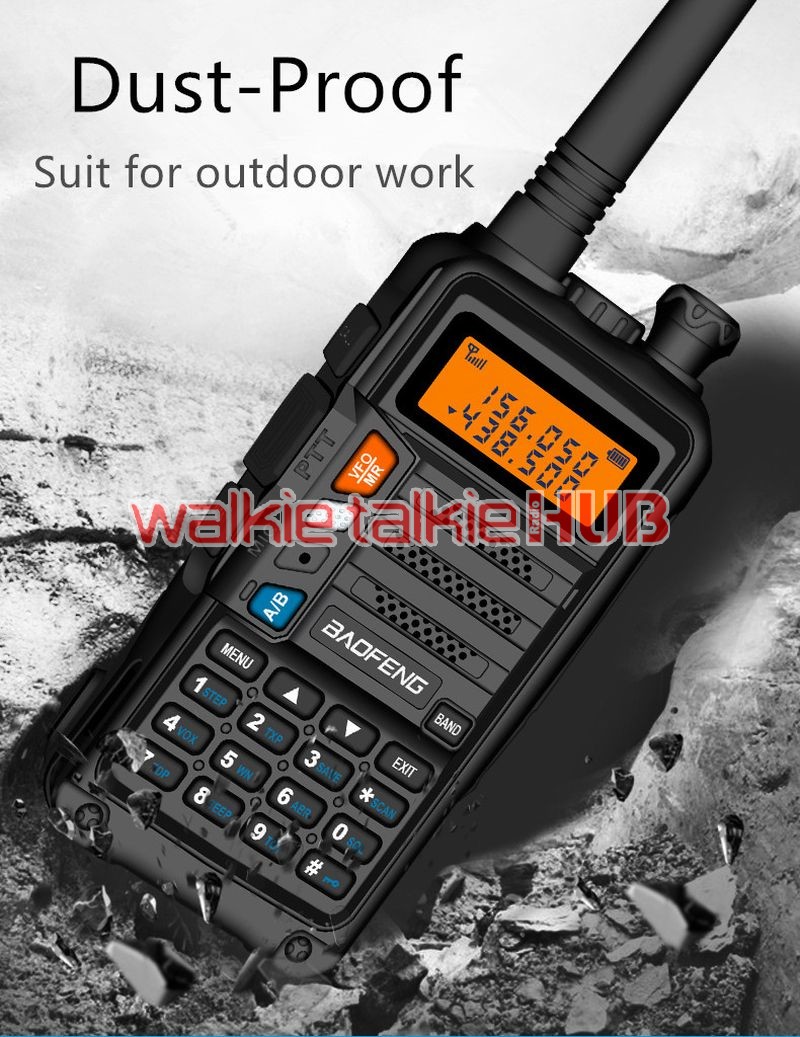

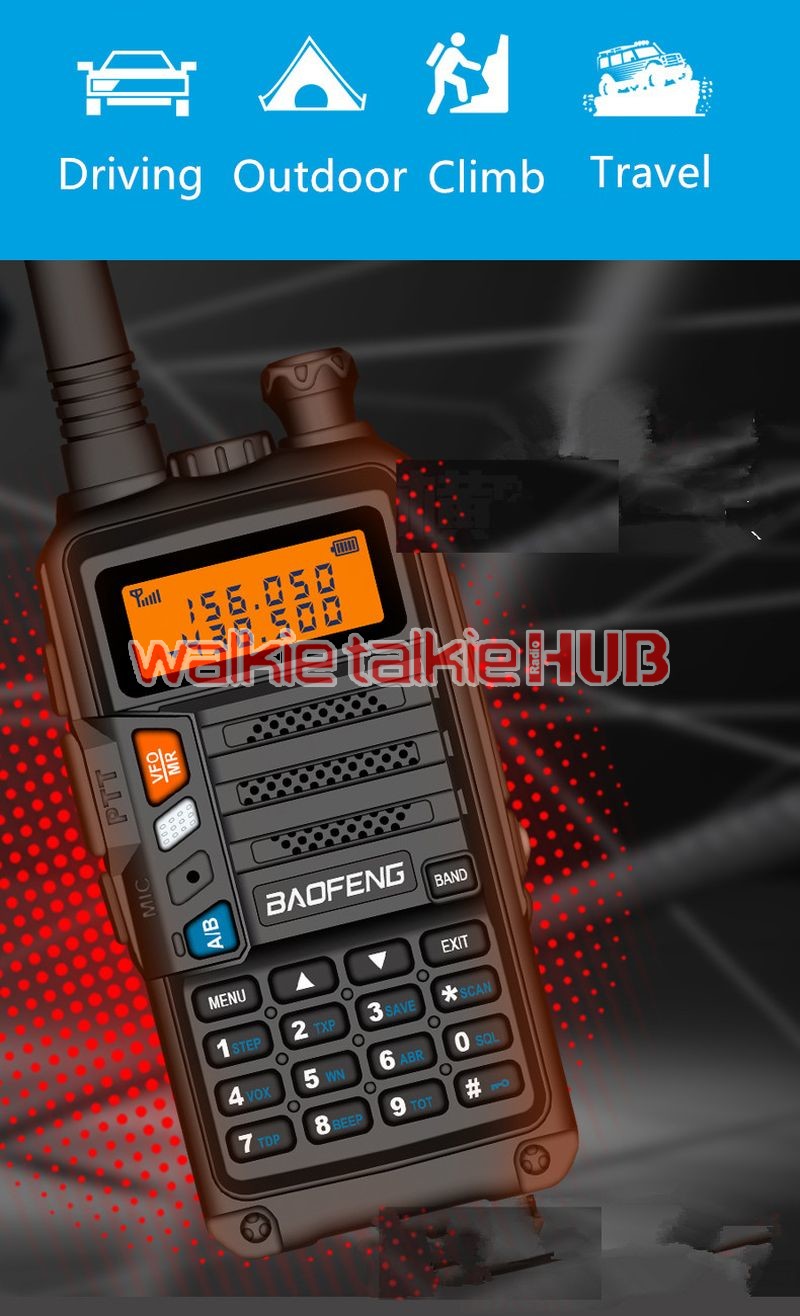

Baofeng UV-860:

The transcevier is a micro-miniature multiband

FM transceiver with extensive receive frequency coverage,

It providing local-area two-way amateur communications along with unmatched monitoring capability


Frequency Range: 136-174 / 400-520MHz

Dual-Band Display, Dual Freq. Display, Dual-Standby

Output Power: 8Watts

128 Channels

50 CTCSS and 104 CDCSS

Built-in VOX Function

1750Hz Brust Tone

FM Radio (65.0MHz-108.0MHz)

LED Flashlight

Large LCD Display

Hight /Low RF Power Switchable

25KHz/12.5KHz Switchable

Emergency Alert

Low Battery Alert

Battery Saver

Time-out Timer

Keypad Lock

Monitor Channel

Channel Step: 2.5/5/6.25/10/12.5/25KHz


 Dual band, dual display, dual standby       A/B band independent operation

128 groups channels storage    Shortcut menu operation mode

 VFO & Memory channels scan      Emergency Alarm

 Tri-color background light selectable   0~9 grades VOX selectable

 PTT & ANI ID   FM radio and 25 stations   storage

 Voice companding         CTCSS/DCS

       PC programmable

 Wide/Narrow Band(25kHz/12.5kHz)    Transmitter time-out timer(TOT)

High/Low TX power selectable  Busy channel lock-out(BCLO)

Item number      UV-860


Frequency Range  65-108MHz(FM Receive only)

136-174MHZ and 400-520HZ (TX/RX)

Channel No.     128

Frequency Stability       ±2.5ppm

Antenna     High gain DualBand  antenna

Antenna Impedance     50?

Operating Voltage   DC 7.4V

Mode of operation Simple or semi-duplex

Dimension(W x H x D)  100 x 52 x 32 mm

Weight 250g(including battery, antenna)


Output power    8W

Modulation Mode    16k?F3E / 11k?F3E

Maximum deviation       <5kHz(Wide) / <2.5kHz(Narrow)

Spurious Radiation       <7?W

Adjacent Ch. power       ?-65dB(Wide) / ?-60dB(Narrow)

Pre-emphasis characteristics    6dB

Current       ?1.6A(5W)

CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity     8-12mv

Intermediation distortion      <10%


Packing include:

1x Baofeng UV-860 Dual band Radio 136-174MHz 400-520MHz

1x Dual band Antenna

1x  Li-ion Battery

1x Charger with Adaptor

1x Belt clip

1x English User manual

1x Hand strip

1x Free earpiece

Weight 1 kg
Dimensions 400 × 300 × 100 mm

Black, Red, Siliver
