TYT DM-UVF10 GPS Digital Walkie Talkie DPMR Dual Band 136-174/400-470MHz Ham Transceiver Radio
Features:
|
Model
|
DM-UVF10
|
Frequency range
|
VHF+UHF:136-174+400-470MHz
|
Channel capacity
|
256CH
|
Output power
|
5W
|
Operating voltage
|
7.2V
|
Antenna impedance
|
50 ohm
|
Work mode
|
simplex
|
Working temperature
|
-30ºC—60ºC
|
Frequency spacing
|
12.5/25kHz
|
Battery capacity
|
1800mAh
|
Color
|
Black
|
Dimension(includes no antenna)
|
125x61x33mm
|
Weight(includes battery)
|
249g
|
Channel type
|
Analog/digital/Mixer-Analog/Mixer-digital
|
Channel mode
|
VFO mode Channel mode MR mode
|
Digital dual-band
|
Yes
|
Color screen display
|
Yes
|
Dual display Dual standby
|
Yes
|
Digital/Analog switch
|
Yes
|
Voice scrambler
|
Yes
|
DTMF function
|
Yes
|
Remote kill stun
|
Yes
|
Contact list editing, storing
|
Yes
|
Message TX/RX(Digital only)
|
Yes
|
English/Chinese standby prompt
|
Yes
|
Private call, group call, all call (digital only)
|
Yes
|
VOX function
|
Yes
|
Backlight brightness setting
|
Yes
|
TOT
|
Yes
|
Busy channel lockout
|
Yes
|
Emergency alarm
|
Yes
|
High/Low power selectable
|
Yes
|
Programmable multifunction side-key
|
Yes
|
CTCSS/DCS auto-scan
|
Yes
|
Keypad lock
|
Yes
|
Scan Mode
|
Yes
|
Battery save
|
Yes
|
Beep Tone
|
Yes
|
Squelch level adjustment
|
Yes
|
Specification
|
Modulation type
|
16k¢F3E,11k¢F3E
|
Max Fr. Deviation
|
<5kHz/<2.5kHz
|
Adjacent Ch. Power
|
>=65dB/>=60db
|
Spurious radiation
|
<7µW
|
Pre-emphasis characteristics
|
6dB
|
TX current
|
<=1.6A(5W)
|
CTCSS/DCS deviation
|
0.5kHz±0.1kHz,0.3kHz±0.1kHz
|
Inter mediation sensitivity
|
1-10mV
|
Inter mediation distortion
|
<5%
|
4FSK distortion
|
<3%
|
Receiver
|
Receiving sensitivity
|
-122dB(12dB SINAD)
|
Audio power
|
1W
|
Audio distortion
|
<=5%
|
Block
|
>=85dB
|
Inter-modulation
|
>=65db >=55dB
|
Adjacent Ch. Selectivity
|
>=65dB >=65db
|
Spurious rejection
|
>=65db
|

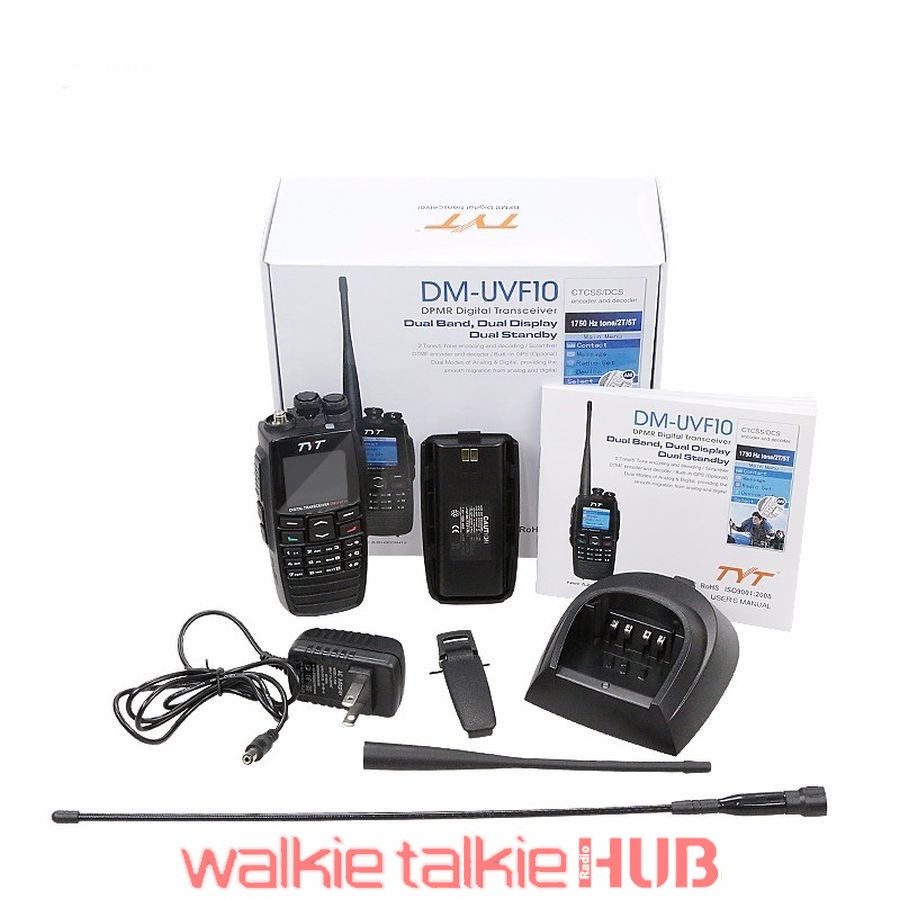

Package contents:
1x Portable Radio
2x Antenna
1x Li-ion Battery Pack
1x Charger
1x Belt Clip
1x User´s Manual
1x PTT Earpiece
