TYT MD-390 DMR Digital UHF 400-480MHz Waterproof IP67 Handheld Radio Compatible with Mototrbo Tier I&II
Description:
Enter the digital age in style with the Tytera MD-390 DMR Digital Portable Two Way Radio! The MD-390 offers amazingly clear, full quieting digital voice communications without walloping your wallet. It operates in analog and digital modes so you can ease into the realm of DMR at your leisure without leaving the comfort of good old analog. It operates on 400-480MHz frequencies (UHF model) or 136-174MHz VHF (VHF model) at up to 5 watts and uses Time-Division Multiple-Access (TDMA) digital technology to double the number of users on a single 12.5kHz channel at either high or low power.
Features:
Frequency band: UHF: 400-480MHz
Specifications:
General | |
Frequency Range | 400-480MHz |
Channel | 1000 Channels |
Channel Spacing | 12.5KHz |
Operating Voltage | 7.4V |
Battery Type | Li-ion |
Operating Temperature | -30°c~+60°c |
Store Temperature | -40°c~+85 °c |
Antenna Impedence | 50 Ω |
Audio Output Power | ≤1000mW 16 Ω |
Battery Capacity | 2200mAh Standard Li-ion Battery |
Dimensions(HWD) | 131×61×36mm(Not Including Antenna) |
Weight | 258g |
Transmitter | |
Output Power | High:≤ 5W(HI) Low: ≤1W(Low) |
Frequency Stability | ±1.0ppm |
Adjacent Channel Power | ≤-60dB |
Free Time Slot Power | TDMA:≤ 57dBm |
Hum and Noise | -40dB 12.5KHz |
Spurious Radiation | Antenna: 9KHz-1GHz ≤-36dBm
1GHz-12.75GHz ≤-30dBm |
FM Modulation Mode | 12.5KHz: 11K0F3e |
4FSK Digital Mode | 12.5KHz (data only): 7K60FXD
12.5KHz(data+voice): 7K60FXE |
Modulation Maximum Deviation | 2.5KHz 12.5KHz |
Nonactive Slot Power | -57dBm |
Digital Protocol | ETSI TS 102 361-1-2-3 |
Vocoder Type | AMBE+2TM |
Audio Response | +1dB~-3dB |
Modulation BER(Bit Error Rate) | ≤5% |
Receiver | |
Analog Sensibility | 0.35 μV/-116dBm(20dB SINDA)
0.22μV/-120dBm(Type) |
Digital Sensibility | 0.3μV/-117.4dBm(BER 5%)
0.7μV/-110dBm(BER 1%) |
Co-channel Rejection | ≥-12dB |
Adjacent Channel Selectivity | TIA603C:65dB ETSI:60dB |
Spurious Response | TIA603C:75dB ETSI:70dB |
Rated Audio Power | 1W |
Audio Response | 1dB~-3dB |
Rated Audio Distortion | 3%(Type) |
Spurious Radiation | Antenna: 9KHz-1GHz ≤-57dBm
1GHz-12.75GHz ≤-47dBm |

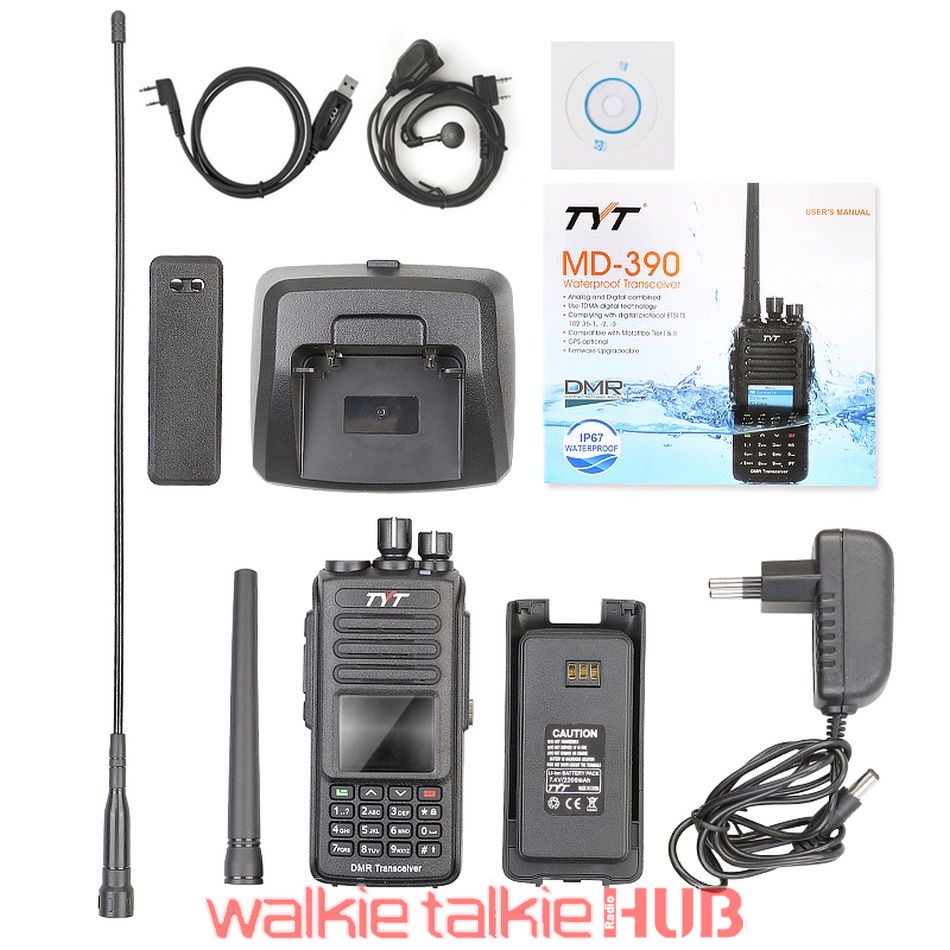

PACKAGE Contents:
1 x TYT MD-390 Digital Radio (UHF 400-480Mhz)
1 x 7.2V 2200mah Li-ion Battery Pack
2 x SMA-Male Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 110V ~ 250V ) with Correct Adapter for your Country
1× Earpiece
1× USB Programming Cable with CD Drive
