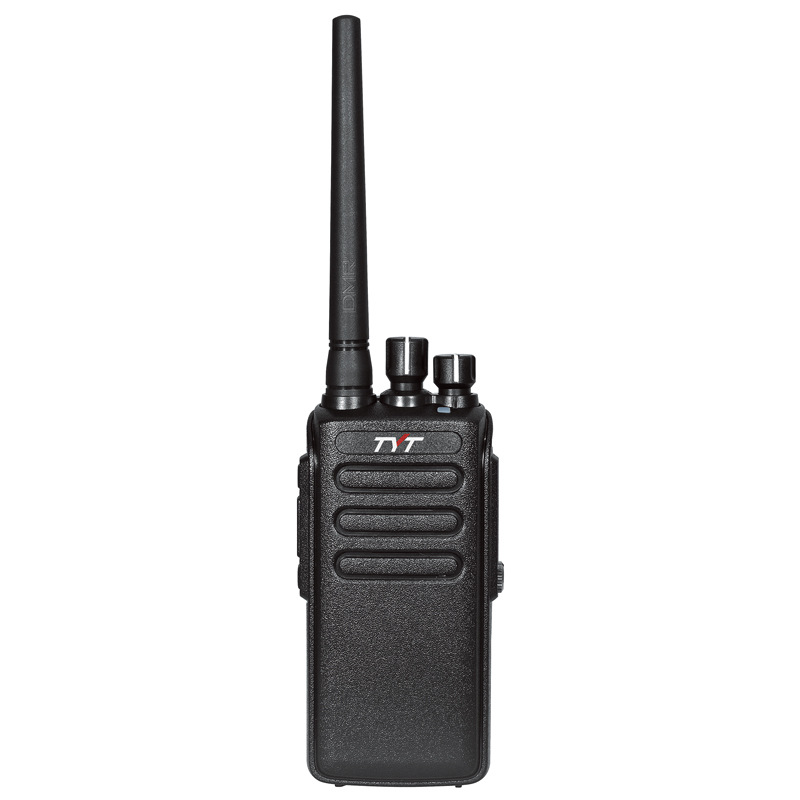

TYT MD358 Updated Digital Explosion-proof Tytera MD-358 IP67 Waterproof Handheld DMR Walkie Talkie Portable Digital Two Way Radio
12W high power Walkie Talkie – military level of perfect quality – Ex ib IIB T3 Gb
Main Functions:
Monitor
Battery save
Low battery alarm
Lone worker
End-tone elimination
Battery Indicator
Side key programmable
Talk around
16 channels
Digital / analog double modes
Read and write by computer
TX High / Low Power selection
Time out timer
English Audio Prompt
Busy channel lockout
Online update
QT (Analog mode)
DQT (Digital Mode)
Wide Band / Narrow Band Selection
Encryption
Single call, group call
IP 67 Waterproof
Specifications:
| General | |
| Frequency Range | UHF: 400-480MHZ |
| Channel Capacity | 256 |
| Channel Spacing | 12.5KHz |
| Operating Temperature | -30~ +60 |
| Operating Voltage | 7.5V DC ±20% |
| Battery | 7.2V 2800mAH Li-ion |
| Frequency Stability | ±2.5 ppm |
| Dimension (with battery and antenna) | 125mm *63mm*38mm |
| Weight (with battery and antenna) | 243g |
| Transmitter | |
| RF Power Output | 12W (real power less than 5W) |
| Frequency Modulation | 16KφF3E/11KφF3E (Analog) 4FSK(Digital) |
| Antenna Impedance | 50Ω |
| FM Modulation mode | 12.5KHz:11K0F3E |
| 4FSK Digital Mode | 12.5KHZ:7K60FXD(data)/7K60FXE(data&voice) |
| Modulation maximum deviation | 2.5KHz @ 12.5KHz |
| Modulation Distortion | < 5% |
| Nonactive Slot Power | -57dbm |
| Vocodec Type | AMBE+2TM |
| Digital Protocol | Digital Protocol |
| Receiver | |
| Analog Sensitivity | 0.35μV / -116dBm(20dB SINDA)
0.22μV / -120dBm(Type) |
| Digital Sensitivity | 0.3μV / -117.4dBm(BER5%)
0.22μV / -110dBm(BER1%) |
| Co-channel Rejection | ≥-12dB |
| Adjacent Channel Selectivity | TIA603C:65dB ETSI:60dB |
| Spurious Response Rejection | TIA603C:75dB ETSI:70dB |
| Rated Audio Output | 1W |
| Audio response | =1dB~-3dB |
| Rated Audio Distortion | <3% |
Each Unit Package Contain:
1* MD-358 Waterproof DMR
1* Antenna
1* 2200mAh Li-ion Battery
1* Belt Clip
1* Charger with AC Power Adaptor (suit for your country)
1* PTT Earpiece
1* Base
1* English User Manual
What makes TYT MD-358 different ?
Intelligent power supply
Intelligent security
Intelligent reinforcement
Smart Stay
Explosion proof technology
Explosion proof battery cell
Booster chip
Technology
