TYT TH-8600 Dual Band Two Way Radio Mobile UHF VHF Transceiver

Original price was: $200.00.Current price is: $120.00.

+ Free Shipping

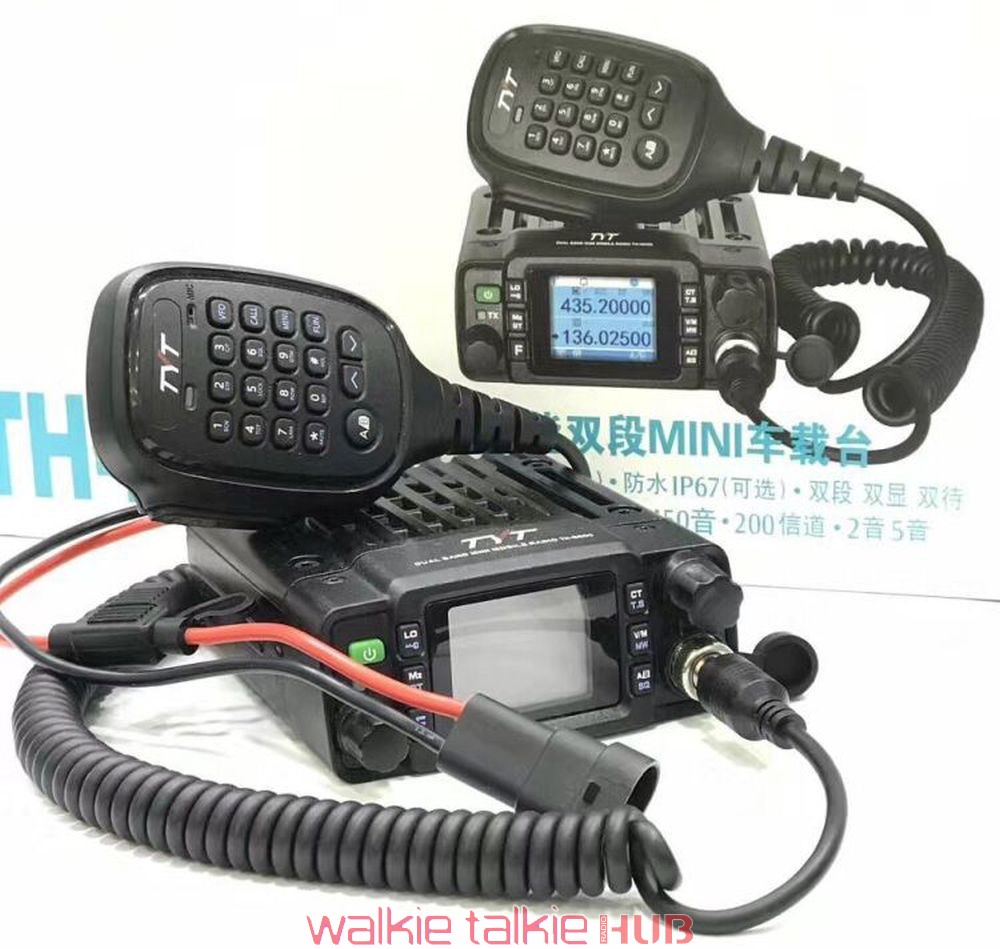

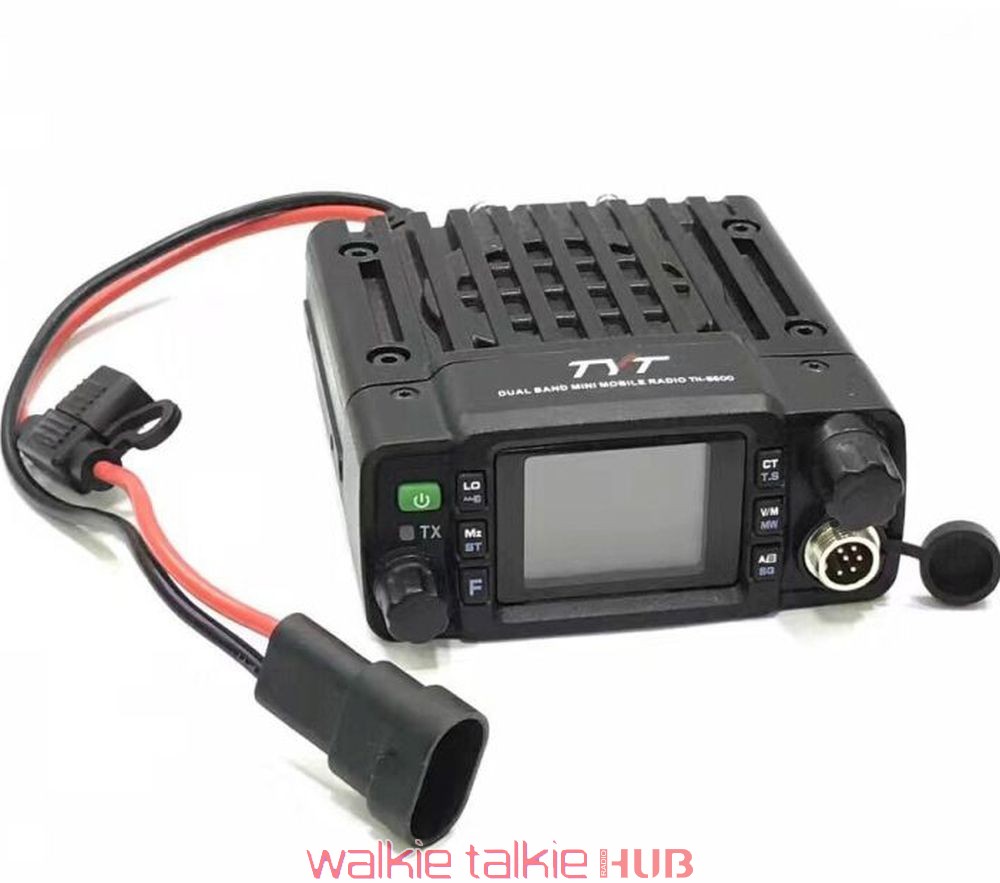

Tytera TYT TH-8600 Dual Band Mini Mobile Transceiver Two Way Radio

 Includes Programming Cable & Software, not waterproof version.

The TH-8600 is a powerful dual band, dual display and dual standby transceiver with 20 watts of power on 400-470MHz UHF and up to 25 watts on 136-174MHz VHF frequencies. It has 200 programmable channels and four programmable function keys so you can maximize flexibility and minimize distraction while you operate RX/TX at the wheel.

The TH8600 features CTCSS and DSC encode/decode, DTMF encoding/decoding, priority channel scanning, and dual band reception. It also features 2Tone/5Tone decoding and encoding, remote kill/stun/activate and a 1750Hz burst tone.

With all these options, one thing is clear. The TYT TH-8600 was made for QUAD and motorcycle action. It’s perfect for almost any compact on or off-road vehicle. Now you can get it for yours.

The Tytera TH-8600 comes with hand microphone, mobile mounting bracket, mobile power cord, an owner’s manual and a one year manufacturer warranty from Tytera.



  • 200 Memory Channels
  • Dual Band
  • 136-174MHz VHF Frequencies
  • 400-470MHz UHF Frequencies
  • Repeater Capable
  • 20W (UHF)/25W (VHF) Transmit Power
  • Power Selectable
  • Memory Channel
  • Channel Scan
  • Priority Scan
  • Skip Channel
  • Dual Watch
  • Busy Channel Lockout
  • Talk Around
  • CTCSS/DCS Encode/Decode
  • Backlit Color LCD Display
  • Channel Name Edit and Display
  • LED Status Light
  • Auto Power Off
  • Timeout Timer
  • 5mm Speaker Port
  • Cloning Capable
  • PC Programmable (Requires Optional Cable)
  • Four Programmable Function Keys
  • Internal Speaker
  • Hand Microphone
  • Cooling Fan
  • Submersible
  • DTMF Encoding and Decoding
  • Stun/Kill/Activate
  • Reset
Item number TH-8600
Frequency Range 136-174MHz/400-470MHz
Channel No. 200
Frequency Stability ±1ppm
Operating Temperature -30℃~+60℃
Operating Voltage 13.8V DC
Dimension 107mm*125mm*45mm
Output power 25W
Transmitting Current 4A@13.8V
Standby Current 0.2A@13.8V
FM Modulation Wide band:16K0F3E
Narrow band:11 K0F3E
Modulation distortion <5%
FM Hun and Noise ≥45dB@25KHz
Adjacent Ch. power ≥60dB@12.5KHz
Audio response +1~-3dB
Sensitivity 0.2μV
Adjacent Ch. Selectivity 60dB@12.5KHz
Intermodulation ≥60dB/≥65dB
Spurious Rejection ≥70dB
Audio response +1~-3dB
RF Sensitivity -122dbm(12db SINAD)
Audio Distortion <5%
FM Hun and Noise ≥45dB@25KHz
Rated audio 4W

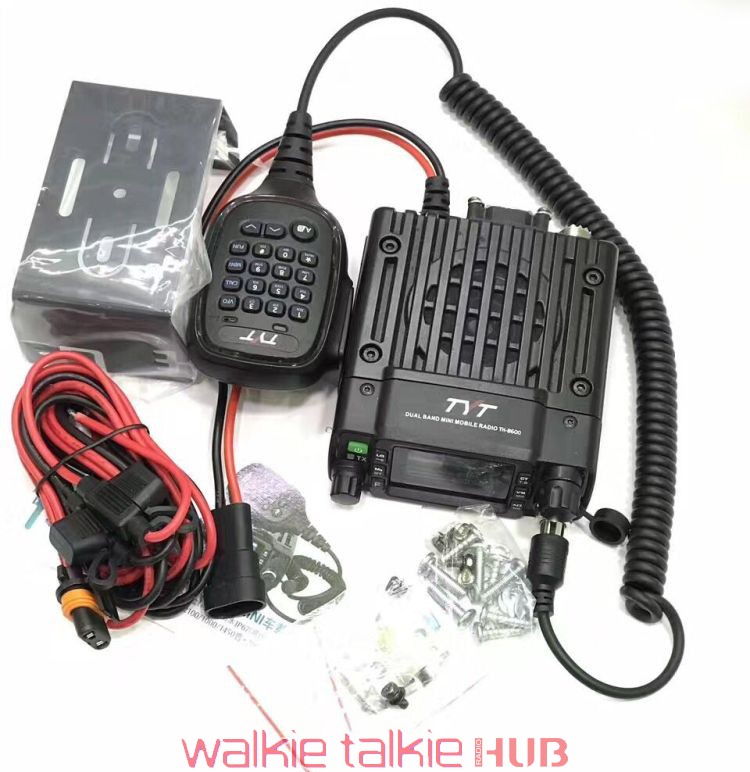

Each Unit Package Contain:

Tytera TYT TH-8600 Dual Band Mini Mobile Two Way Radio

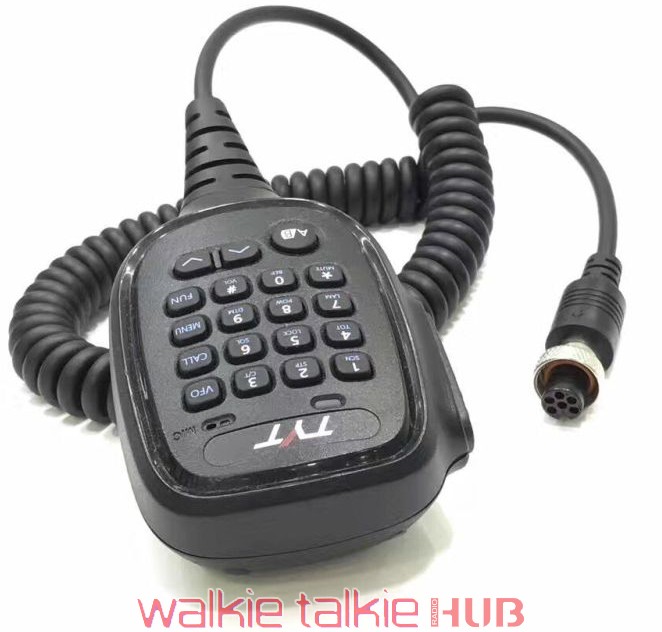

Hand Microphone

Mobile Mounting Bracket

DC Power Cable

Programming Cable & Software

Owners Manual

Tytera TH-8600 Specifications

  • Dimensions: 125mm (W) × 45mm (H) × 107mm (D)
  • Antenna Connector Type: SO-239 (UHF Female)

Weight 1.5 kg
Dimensions 200 × 160 × 70 mm
