TYT TH-9800 Pro 50W 809CH Quad Band Dual Display Repeater Scrambler VHF UHF Transceiver Car Truck Ham Radio
The TYT TH9800 QuadBand Transmit, Twin Receive, Dual Display FM Radio Transceiver for the 10 Meter, 6 Meter, VHF 2 meter & UHF 70cm Bands!.
Loaded with features, Over 800 AlphaNumeric Memory channels!
True automatic cross band repeater mode, Twin simultaneous Receive, w/seperate Vol & Squelch controls!
Multiple Tuning Steps,. Includes full keypad microphone!
Remote mountable Faceplate!
Receive Range: 26-33Mhz, 47-54 MHz, 110-180Mhz ( with AM Air band), 350-399Mhz, 430-512Mhz, 750-947Mhz.
50W 2M & VHF / 40W 10M & UHF, with Multiple lower power settings available too.
ctcss, dcs (PL & DPL), DTMF, 2 tone/5tone signaling, ANI, Display Brightness setting & more!
PC Programmable, w/downloadable free software, Requires 12-14Vdc power hookup, at 12A or more, and an Optional suitable Antenna.
Includes 12Vdc Power Cable & Mounting Bracket, SO-239 Antenna connector on radio.
Built In Cooling Fan.
Functions:
Outstanding 0.2uV sensitivity across 10m/6m/2m/70cm bands
Brilliant crossmodulation, intermodulation rejection and strong signal performance – similar to commercial radios.
Commercial quality and commercial performance, too!
809 memory channels
DTMF mic included!
Digital FM broadcast band radio
High/low output power levels
Reverse frequency selection
Dual (V/U) squelch set levels
Dual repeater offsets selectable
Multi-function scanning
Repeater offset selectable
Keypad lock function
Channel name editing
CTCSS/DCS encode/decode
Dual Band/Dual Receive: (Full Duplex)
Cross Band Repeat
TX Power: 5-50 Watts
Memories: 256
Antenna Connection: Single SO 259s
Specification:
| General | |
| Frequency Range | 26-33MHz (RX/TX) (AM band RX) |
| 47-54MHz (RX/TX) (AM band RX) | |
| 136-174MHz (RX/TX) | |
| 400-480MHz (RX/TX) | |
| 108-136 (AM band RX only) | |
| 320-399.000 (RX only) | |
| 750-950 (RX only) | |
| Channel Capacity | 809 channels |
| Channel Spacing | 5/10/12.5/15/20/25/50KHz |
| Modes of Emission | F3, F2, F1 |
| Antenna Impendence | 50 Ohms, unbalanced(Antenna Duplexer bulit-in) |
| Frequency Stability | ±5 PPM@-140°F~+140°F(-10-+60) |
| Operating Voltage | -4°F~+A140°F(-10-+60) |
| Operating Temperature Range | 13.8VDC (±15%). Negative ground |
| Current Cunsumption(Approx) | RX: 0.5A (Squelched) |
| TX:8.0A (50/430MHz), 8.5A(29/144MHz) | |
| Case Size(WXHXD) | 140×41.5x168mm (w/0 knobs & connectors) |
| Weight(Approx) | 2.2lb(1Kg) |
| Transmitter | |
| Output Power | 50/20/10/5W(29/50/144MHz) |
| Modulation Type | Variable Reactance |
| Maximum Deviation | Better than -60dB(29MHz:Better than -50dB) |
| Modulation Distortion | Less than 3% |
| Microphone Impedance | 2kΩ |
| DATA jack Impedance | 10KΩ |
| Receiver | |
| Circuit Type | Double-conversion super-heterodyne |
| Intermediate Frequency | 45.05MHz/450KHz(left band) |
| 47.25MHz/450KHz(right band) | |
| Sensitivity(for 12dB SINAD) | Better than 0.2μV |
| Squelch Sensitivity | Better than 0.16μV |
| Selectivity(-6dB/-60dB) | 12KHz/30KHz |
| Maximum AF Output | 2W@8Ω for 5% THD |
| AF Output Impedance | 4-16Ω |

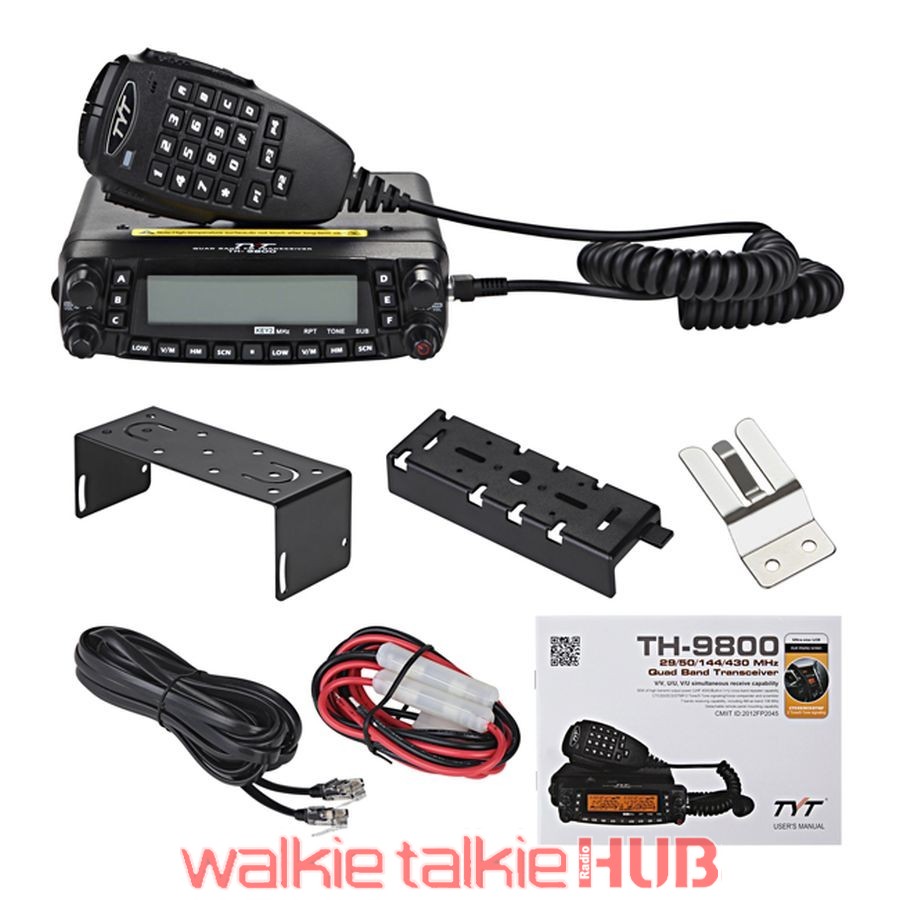

Package:
1x TYT TH-9800 Mobile Transceiver
1x Handheld Microphone
1x Power Cable
1x Screws and Accessories
1x User’s Manual
1x Fixed Bracket
1x Microphone Hanger
1x Programming Cable& CD
