TYT TH-UV8000D 10W Cross Band Radio

Sale!

$63.00

Dual band, dual display, dual standby/2*128 channels to store
FM radio receiver and 25 channels/Channel spacing selectable (25/12.5 KHz)
Hand free VOX function/CTCSS & DCS encoding and decoding
Cross band function/Low battery alarm/Emergency Alarm/Shift repeater function
ANI function/DTMF & Remote kill/stun function/MSK/1750 Tone
SKU: 170124 Category:

Description

TYT TH-UV8000D Upgrade Version Powerful Long Range 10W Cross Band VHF UHF Amateur Radio Transceiver with 3600MAH Li-ion Battery

Features:

Dual band, Dual display , Dual standby
1750Hz tone
COMP function
FM radio function, can store up 25 radio channles
Reverse frequency function
VOX transmitting
TOT(Time-out timer)
CTCSS/DCS scanning
DTMF encoding and decoding
Tri-color background light selectable
Remote Kill/Stun/Activate/Revive
Cross-band repeater function
Non-standard CTCSS/DCS input

General
Frequency range VHF:136~174MHZ

UHF:400~520MHZ

Frequency Stability ±2.5PPm
Operating voltage DC 7.2V (Rechargeable Li-ion battery)
Channel NO. 128
Antenna impedance 50 ohm
Mode of operation Simplex or semi-duplex
Battery capacity 3600mAh
Color Black
Dimension(Exclude antenna) 13x6x3.5cm
Weight 291g
Receiver
RF Sensitivity -122dBm(12dB SINAD)
Audio power >0.5W
Audio distortion <10%
Blocking >=85dB
Intermediation >=60dB, >=55dB
Selectivity >=65dB, >=60dB
Spurious rejection >=65dB
Transmitter
Output power <=10w, >=5W
Modulation mode F3E
Maximum deviation <5KHz/<2.5KHz
Adjacent Ch. power <=-65dB/ <=-60dB
Spurious radiation <7µW
Pre-emphasis characteristics 6dB
Current <=2.8A(10W),<=1.8A(5W)
CTCSS/DCS deviation 0.55KHz±20.15KHz, 0.4KHz±20.1KHz
Intermediation sensitivity 8~12mV
Intermediation distortion <5%

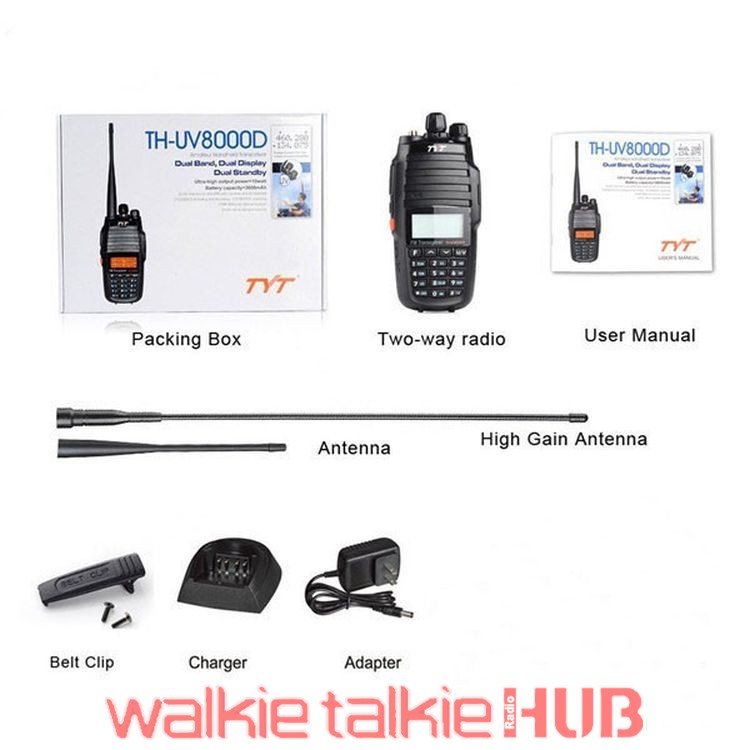

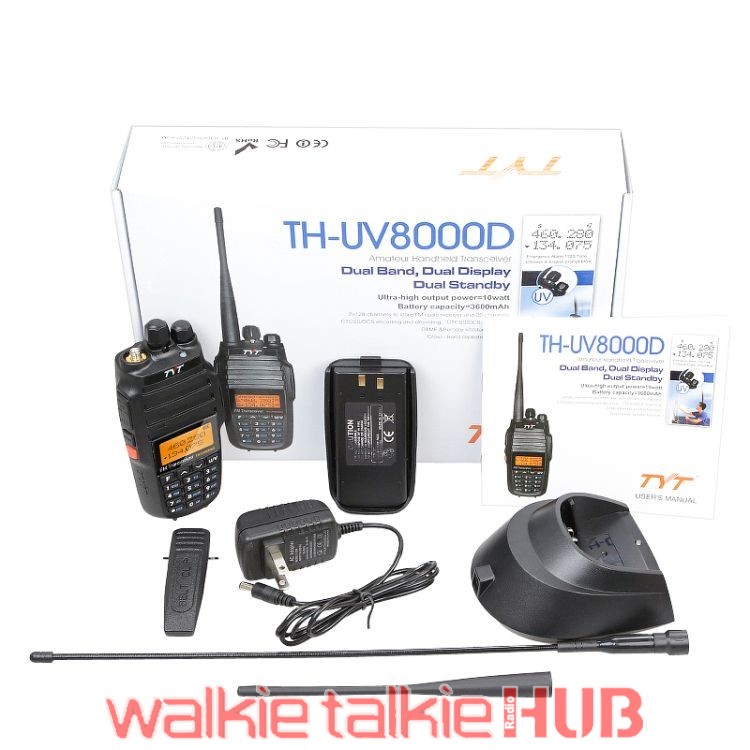

Package list :

  • 1 x TYT TH-UV8000D Cross Band Version
  • 2 x Antennas (17cm /36cm)
  • 1 x Li-ion battery pack
  • 1 x Charger
  • 1 x Belt clip
  • 1 x Lanyard
  • 1 x User`s manual
  • 1 x PTT earpiece

TYT TH-UV8000D 10W Cross Band Radio

Additional information

Weight 0.98 kg
Dimensions 250 × 200 × 50 mm
