Sale!

TYT TH-UV88 Dual-band VHF UHF Handheld Analogue Radio

Original price was: $88.00.Current price is: $45.00.

+ Free Shipping

TYT TH-UV88 VOX dual band walkie talkie VHF 136-174MHz & UHF 400-480MHz 5W 200CH Scrambler Portable Two way radio TYT FM Radio

Features:

  1. VHF 136-174MHz & UHF 400-480MHz
  2. DOT-MATRIX LCD display
  3. A/B band storage and scanning
  4. FM radio and 24 station memory
  5. Wide/Middle/Narrow band selectable
  6. VOX 0-7 grade setting
  7. Shortcut menu operation mode
  8. Emergency alert
  9. ANI Function
  10. DTMF encoding and decoding
  11. Multiple types of keys lock setting
  12. Multi-display mode
  13. Remote stun/Kill/active
  14. Dual Band, Dual wait, Dual standby
  15. 200 Channels
  16. Battery Saving
  17. 8 groups of Scrambler
  18. 1750Hz tone
  19. 2 Tone/ 5 Tone
  20. CTCSS/DCS

Specifications:

General

Frequency Range

136-174MHz & 400-480MHz

Frequency Stability

±2.5PPm

Operating Voltage

DC7.4V (Rechargeable Li-ion battery)

Channel Number

200

Antenna

SMA-Male High gain antenna

Antenna Impedance

50 ohm

Mode of Operation

Simplex or semi-duplex

Battery Capacity

1400mAh

Receiver

RF Sensitivity

-122dBm(12dB SINAD)

Audio power

>0.5W

Audio distortion

<10%

Blocking

≥85dB

Intermediation

≥55dB

Selectivity

≥60dB

Spurious rejection

≥65dB

Transmitter

Output Power

≤5W

Modulation Mode

16KØ F3E/11KØ F3E

Maximum deviation

<5KHz/<2.5KHz

Adjacent Ch.Power

≤-65dB

Spurious radiation

<7µW

Pre-emphasis characteristics

6dB

Current

≤2.8A(10W) ≤1.4A(5W)

CTCSS/DCS deviation

0.55KHz± 0.15KHz, 0.4KHz± 0.1KHz

Intermediation sensitivity

8-12mV

Intermediation distortion

<5%

Package Contains:

1× TYT TH-UV88 Dual band radio

1× 7.4V 1400mah Li-ion Battery Pack

1× SMA-Male Standard Antenna

1× Battery belt clip

1× Charger

1× ENG Manual

tyt th-uv8 tyt th-uv8 tyt th-uv8 tyt th-uv8

Weight 1 kg

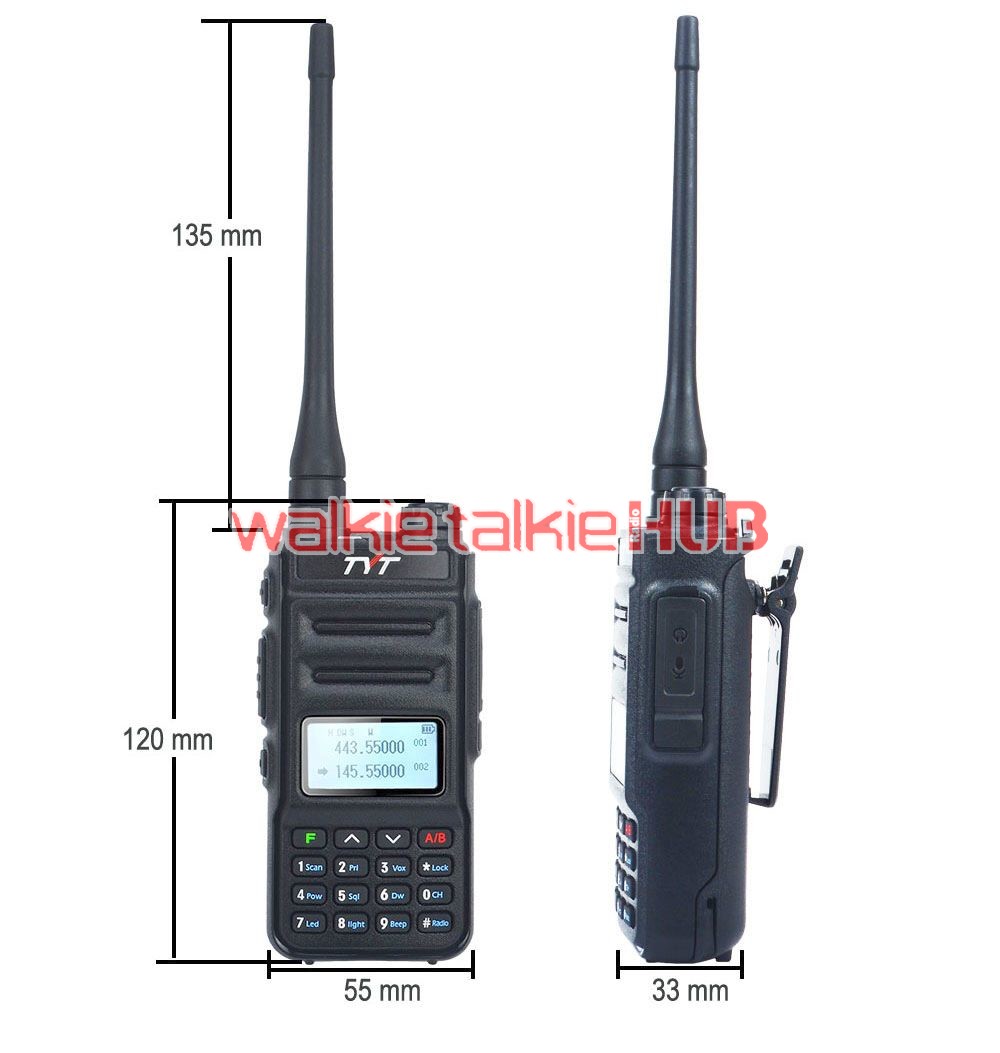

Dimensions 400 × 300 × 100 mm
Frequency Range

136-174MHz / 220-260MHz / 400-470MHz
