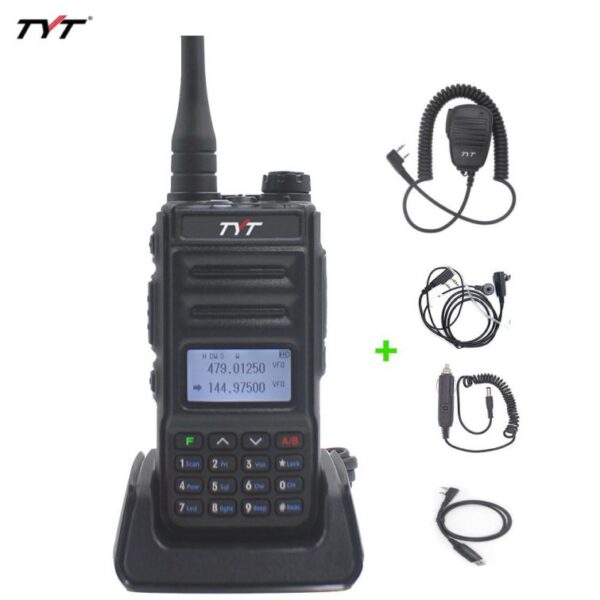

TYT TH-UV88 Radio with Speaker Microphone Programming Cable Car Charger PTT Headset

$59.90

& Free Shipping
Guaranteed Safe Checkout

TYT TH-UV88 Radio with Speaker Microphone Programming Cable Car Charger PTT Headset

TYT TH-UV88 Talkie Walkie tyt dual band VOX Scrambler FM radio 136-174MHz & 400-480MHz UHF/VHF portable two way radio

Features:

  1. VHF 136-174MHz and UHF 400-480MHz
  2. A dot matrix LCD display
  3. A / B band storage and scanning
  4. FM radio station and 24 memory
  5. Wide / Half / Narrow band selectable
  6. VOX 0-7 degree setting
  7. How the context menu works
  8. Emergency alarm
  9. ANI function
  10. DTMF encoding and decoding
  11. Different types of setting lock keys
  12. Multi-mode display
  13. Ranged stun / kill / active
  14. Dual Band, Double wait, Dual standby
  15. 200 channels
  16. Battery saver
  17. 8 Scrambler groups
  18. 1750Hz tone of
  19. 2 Tone / 5 Tone
  20. CTCSS / DCS

Technical specifications:

General

Frequency range

136-174MHz & 400-480MHz

Frequency stability

± 2.5PPm

Operating voltage

DC7.4V (Rechargeable Li-Ion battery)

Channel number

200

Antenna

SMA-Male high gain antenna

Antenna Impedance

50 ohm

Operating mode

Simplex or semi-duplex

Battery capacity

1400mAh

Receiver

RF sensitivity

-122dBm (12dB SINAD)

Audio power

> 0.5W

Audio Distortion

<10%

Block

≥ 85dB

Intermediation

≥ 55dB

Selectivity

≥ 60dB

Spurious rejection

≥ 65dB

Transmitter

Power output

≤ 5W

Modulation mode

16KØ F3E / 11KØ F3E

Maximum deviation of

<5KHz / <2.5KHz

Adjacent Ch.Power

≤-65dB

Spurious radiation resistant

<7 & micro; W

Characteristic pre-emphasis

6dB

Current

≤ 2.8A (10W) ≤ 1.4A (5W)

CTCSS / DCS deviation

0.55KHz ± 0.15KHz, 0.4KHz ± 0.1KHz

Intermediation sensitivity

8-12mV

Distortion Intermediation

<5%

Package Contains:

1 × TYT TH-UV88 Dual band radio

1 × 7.4V 1400mah Li-Ion Battery Pack

1 × SMA-Male Standard Antenna

1 × belt clip battery

1 × charger

1 × ENG Manual

1 × Speaker Microphone

1 × Programming Cable

1 × Car Charger

1 × PTT Headset

Weight 0.6 kg
Dimensions 300 × 200 × 100 mm
