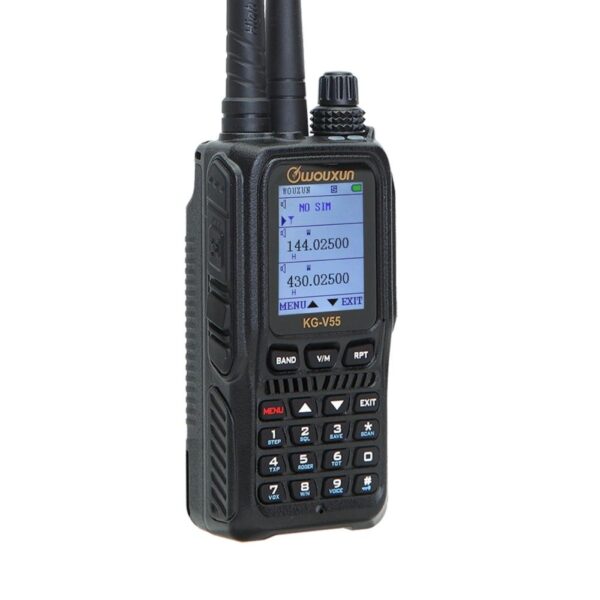

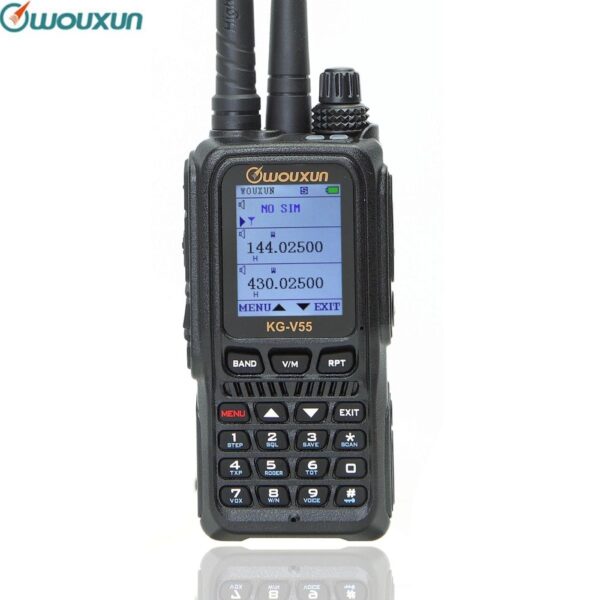

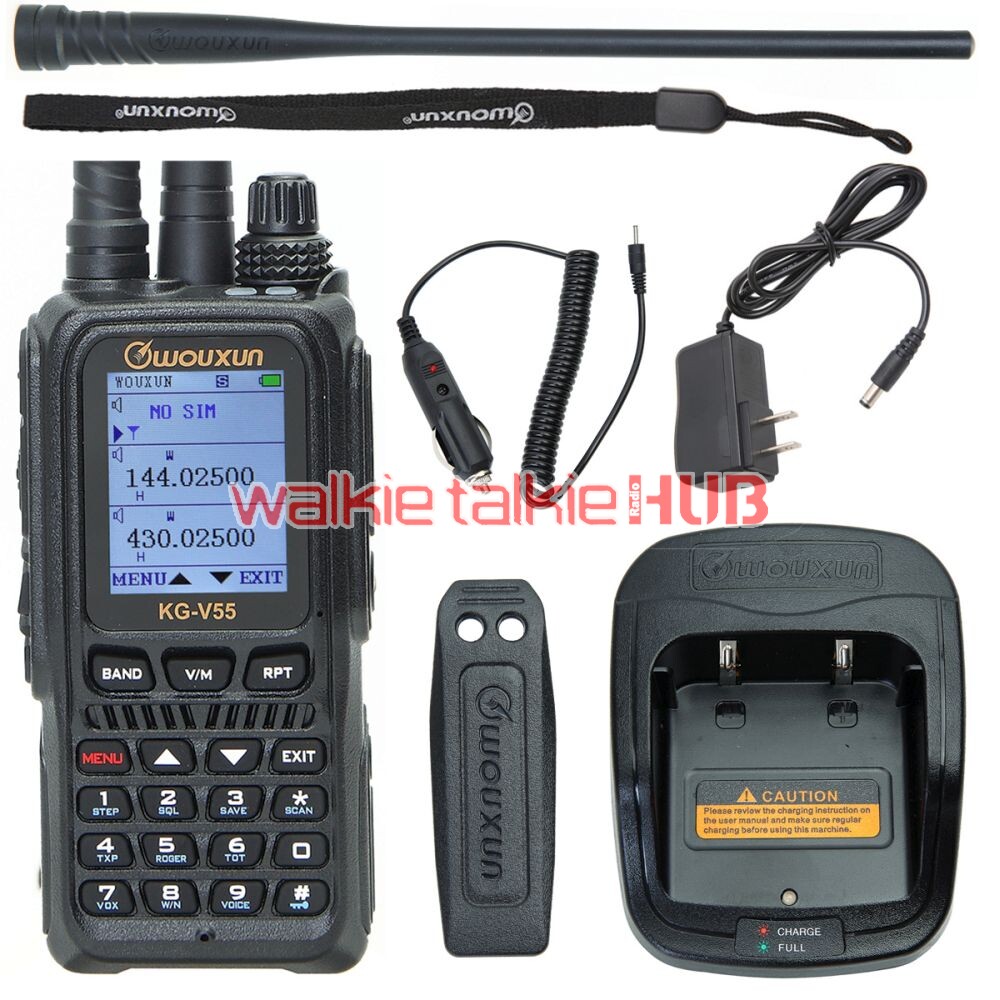

WOUXUN KG-V55 UV Dual Band 4G LTE Public Network Radio For US Amateur Walkie Talkie
WOUXUN KG-V55 UV Dual Band 4G LTE Public Network Radio For US Amateur Walkie Talkie - Image 2
WOUXUN KG-V55 UV Dual Band 4G LTE Public Network Radio For US Amateur Walkie Talkie - Image 3
WOUXUN KG-V55 UV Dual Band 4G LTE Public Network Radio For US Amateur Walkie Talkie - Image 4

WOUXUN KG-V55 UV Dual Band 4G LTE Public Network Radio For US Amateur Walkie Talkie

Original price was: $280.00.Current price is: $188.00.

+ Free Shipping

WOUXUN KG-V55 UV Dual Band 4G LTE Public Network Radio For US Amateur Ham Handheld Transceiver Two Way Radio Walkie Talkie

Main Functions

  • Large Color Screen
  • Compatible With 4G / 3G / 2G Public Network
  • Twin Modes & Tri Bands
  • Cross-Mode Repeat , Simcard Radio<->Analogue Radio,
    Analogue Radio<->Analogue Radio
  • Simultaneous Reception Among Three Bands
  • Duplex Work Among Three Bands (One Band TX, Another Bands RX)
  • 200 contacts , Caller ID
  • Offset , Shift Frequency in Analogue Mode
  • UHF/VHF, VHF/UHF Cross-Band Repeat
  • VOX Function
  • Multi-definition For Side Keys
  • DTMF Encode and Decode
  • Memory Channels 999
  • Selective Calls, Group Calls, All Calls
  • SOS Emergency Alarm
  • Lamp , Backlight , Stopwatch
  • Talk-Around
  • Compander , Scrambler
  • Yearly Fee For The Platform Administration Each Radio is Charged



General
   Audio Power ≤500mW
   Operating Temperature -20℃~+40℃
   Voltage 3.7 VDC
   Weight 300 G
   Size 136 x 59 x 34 MM
Public Network
   Work Band 4G / 3G / 2G
   Max TX Power 23~25dBm @ AII Up Bits
   RX Sensitivity -106dBm
Analogue
  Frequency Range

   Suitable For Different Countries or Areas
136-174 & 400-470MHz (RX/TX)
136-174 & 400-480MHz (RX/TX)
144-148 & 430-440MHz (RX/TX)
76-108MHz (FM , RX , Setp 100K)
   Setp 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz
   Memory Channels 999
   Mode F2D/F3E
   Antenna Impedance 50Ω
Analogue Transmitter
Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF 2.5W , VHF 3.0W
Analogue Receiver
Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM


Audio Distortion

 ≤5%
   Sensitivity UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD)



Weight 0.6 kg
Dimensions 400 × 300 × 100 mm
