Wouxun KG-UV6D Dual Band 136-174MHz & 400-470MHz Professional FM Two-way Radio
WOUXUN KG-UV6D U.V Dual Band Two-Way Radio
• Dual Band, Dual Frequency, Dual Display, Dual Standby
• VHF&UHF, UHF&UHF or VHF&VHF working modes selectable
• DTMF Encoding Function
• Digital FM radio (76-108MHz)
• Bright Flashlight Illumination Function
• 128 memory channels
• VOX Function
• 105 groups D.C.S and 50 groups CTCSS
• SOS Function
• Wide/Narrow Bandwidth Selection (25khz/12.5khz)
• Multi-display modes (channel order number/ channel frequency/ channel name selectable)
• Stopwatch timer function
• Low-voltage voice prompt
• Busy Channel Lockout
• frequency steps selectable: (5K/6.25K/10K/12.5/50K/100K)
• Offset frequency setting (0-69.975MHz)
• Keyboard lock (Auto/Manual)
• Multi-functional scan modes
• Programmable by computer or keypad
• 1750Hz burst tone
• Priority Scan, Add Scanning Channel
• High/Low Power Selection
• Channel Name Edit and Display
• Transmit Overtime Prompt
• Wire Clone function
• IP55 waterproof
Specification:
General | |
Frequency Range | 136-174&400-470 MHz (RX/TX) |
Memory Channels | 199 channels |
Frequency Stability | ±2.5ppm |
Operating Voltage | 7.4V |
Operating Temperature | -30°C~+60°C |
Waterproof | IP 55 |
Antenna Impedance | 50Ω |
Battery Capacity | 7.4V/1400mAh (12.58Wh) |
Dimension | 120×65×40(mm) |
Net Weight | 265g (included battery and antenna) |
AS Transmitter | |
Frequency Stability | ±2.5PPM |
RF Carrier Power | UHF: 4W VHF: 5W |
Effective Radiation Power (ERP) | within pre-determined value ±7.5dB |
Max. Frequency Deviation | Channel Space: 25KHz ±5KHz
Channel Space: 12.5KHz ±2.5KHz |
Audio Modulation | +3dB (pre-emphasis by 6dB between 0.3-3KHz) |
Adjacent Channel Power | Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB |
Spurious Radiation | ≤-30dBm |
Inter modulation Attenuation | ≥40dB |
Modulation Distortion | ≤10% |
Residual FM | ≤-35dB |
Residual AM | ≤3% |
AS Receiver | |
Sensitivity (12dB SINAD) | 0.16µV |
Squelch Rejection Sensitivity | ≤0.8µV |
Squelch Sensitivity | ≤0.2µV |
Audio Output power | 500mW |
Audio Distortion | ≤5% |
Audio Response | (300-3000Hz) +1 to -3dB |
Co-channel Rejection | ≥-8.0dB |
Performance of Amplitude Limiter | ≤3 |
Adjacent Channel Selection | Channel Space: 25KHz ≥70 dB
Channel Space: 12.5KHz ≥60 dB |
Inter-modulation | ≥65 dB |
Resistance | ≥84 dB |
Spurious Radiation | 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm |
DOCK Desktop Charger | |
Input: AC100V-240V, 50-60Hz; Output: DC8.4V, 450mAh; Plug Type: EU |

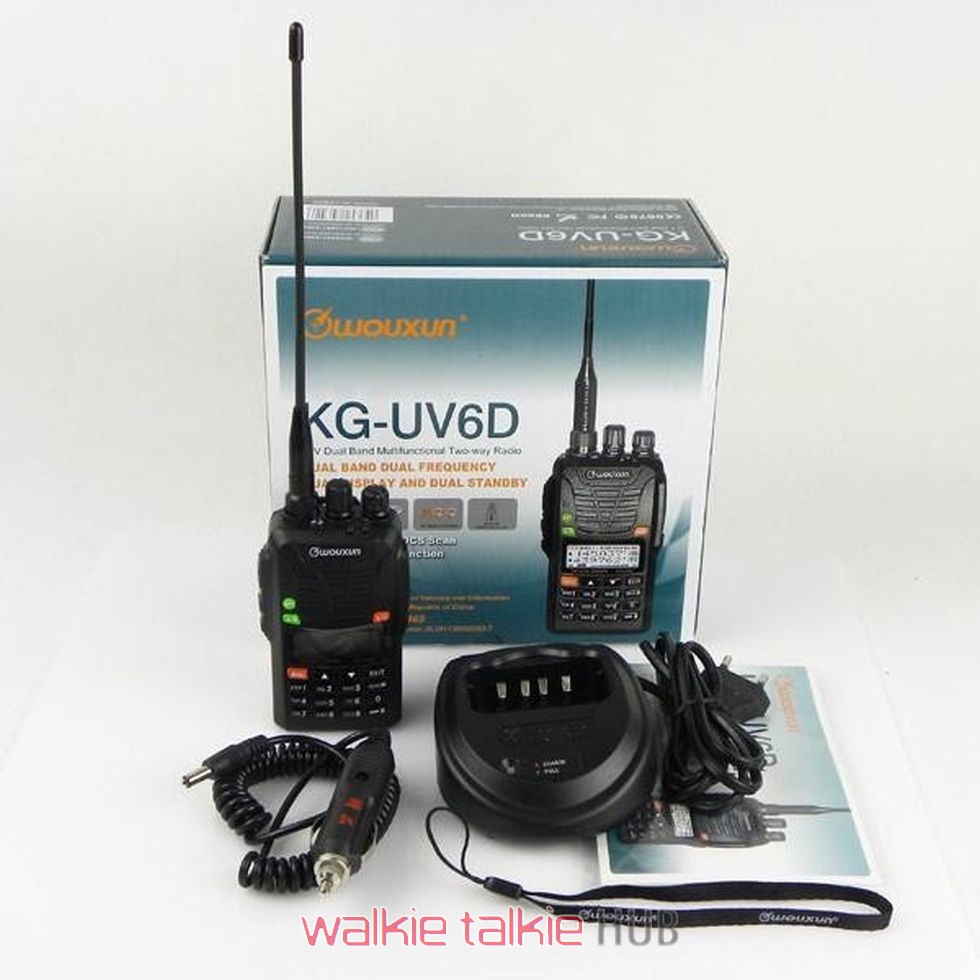

Contains:
1x WOUXUN KG-UV6D U.V Dual Band Two-Way Radio Body (not included battery)
1x 7.4V/1700mAh Battery
1x Antenna
1x DOCK Desktop Charger
1x Belt Clip
1x Hand Strap
1x PTT Earpiece
