Wouxun KG-UV8E Tri Band Amateur 2M/220MHz/440MHz HT Transceiver

Wouxun KG-UV8E 136-174/220-260/400-520mhz Tri Band Amateur Two Way Radio

The Wouxun KG-UV8E has all the same features of the KG-UV8D with the addition of one extra band for full transmit and receive on 1.25 meters from 222Mhz to 225Mhz.

The Wouxun KG-UV8E supports the following bands and frequency ranges:

RX Only		RX and TX
Band	Frequencies	Band	Frequencies
VHF	136-174MHz	VHF	144-148MHz
VHF	220-260MHz	VHF	222-225MHz
UHF	400-520MHz	UHF	420-450MHz

Features:

Large Colorful Screen

Multi-Display Languages

Duplex Repeater

VOX

Channel Group Scanning

DTMF Encoding/Decoding

All Calls, Group Calls and Selective Calls

High/Low Power Selection (VHF:5W/1W, UHF:4W/1W)



Description of Features:

New or Upgrade Functions
1.Voice Commander
2.Non-Standard CTCSS/DCS
3.Scrambler
4.Backlight intensity can be adjusted
5.FM radio can be stored and retrieved 20 sets of frequency
6.Power-On Message Editable

Old Functions
1.Dulex Repeater(VHF to UHF or UHF to VHF)
2.Duplex Work Mode(TX on one area while RX on the other area simultaneously
3.Dual Receiving(RX on the same/different bands of A&B areas simultaneously)
4.Large Colorful Screen
5.Frequency Range(suitable for different countries or areas):
136-174/220-260/400-520MHZ(RX/TX)
6.Dual Display Dual Band Display on Large Screen, Two Independent Operation System
7.Frequency Offset and Direction Programmable in Repeater Mode UHF/VHF or VHF/UHF Cross-Band Repeater
8.999 Memory Channels
9.Output Power(VHF:5W/UHF:4W)
10.QT/DQT Encoding/Decoding, QT/DQT Scan
11.VOX
12.Multi Definition for Side keys
13.Incoming Message Display Caller ID display
14.DTMF Encoding & Decoding
15.All Calls, Group Calls And Selective Calls
16.SOS Function
17.Priority Scan Function
18.Remote Alarm
19.Wide/Narrow Bandwidth Selection (25/12.5KHz)
20.Voice Guide: Chinese/English
21.Chinese/English Screen Display
22.Bright Flashlight illumination
23.Single-Tone Pulse Frequency:2100Hz/1750Hz/1000Hz/1450Hz(signalling for activating repeater)
24.Reverse Frequency
25.Stopwatch

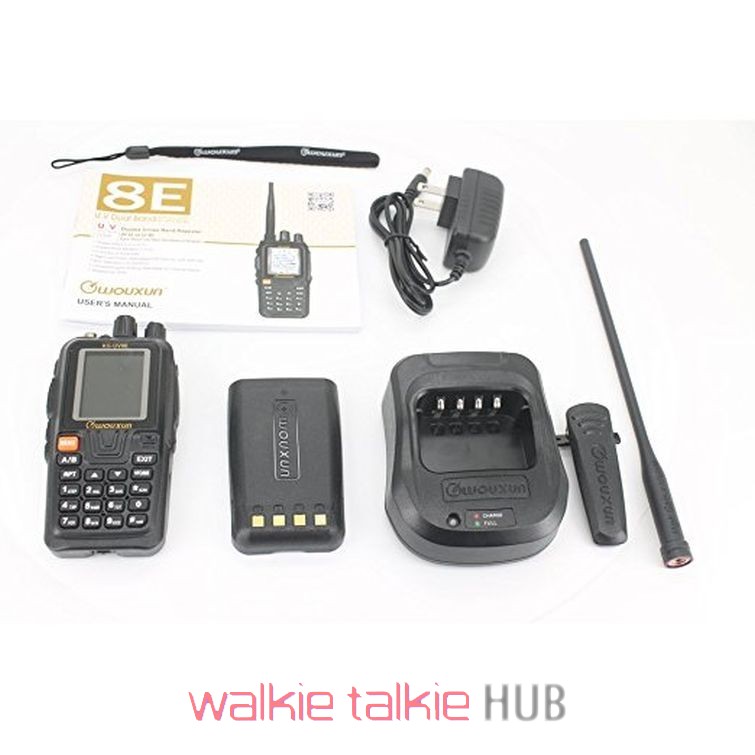

Standard Package:

1 x KG-UV8E (136-174 & 220-260 & 400-480MHz)

1 x High gain antenna

1 x 1700mAh Li-ion Bettery

1 x Desktop Charger

1 x Power cord for charger (different standard plugs for different market needs)

1 x Belt Clip

1 x Hand Strap

1 x User’s Manual (English)

1 x PTT Earpiece
