Wouxun KG-UV9D Mate Upgrade version KG-UV9D Plus Walkie Talkie


+ Free Shipping

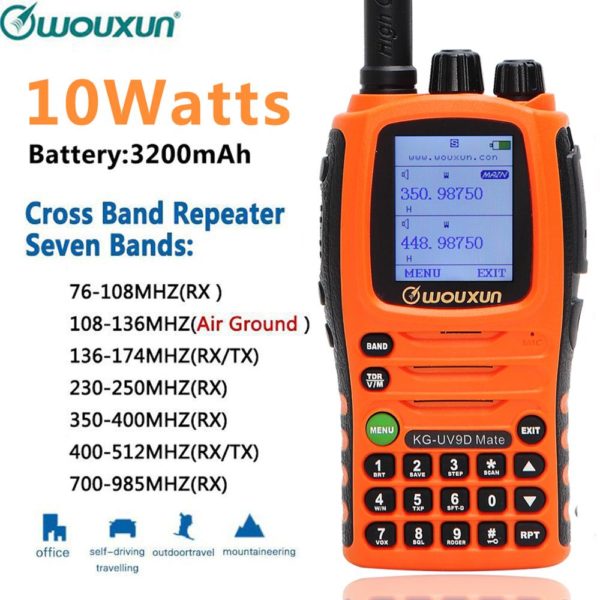

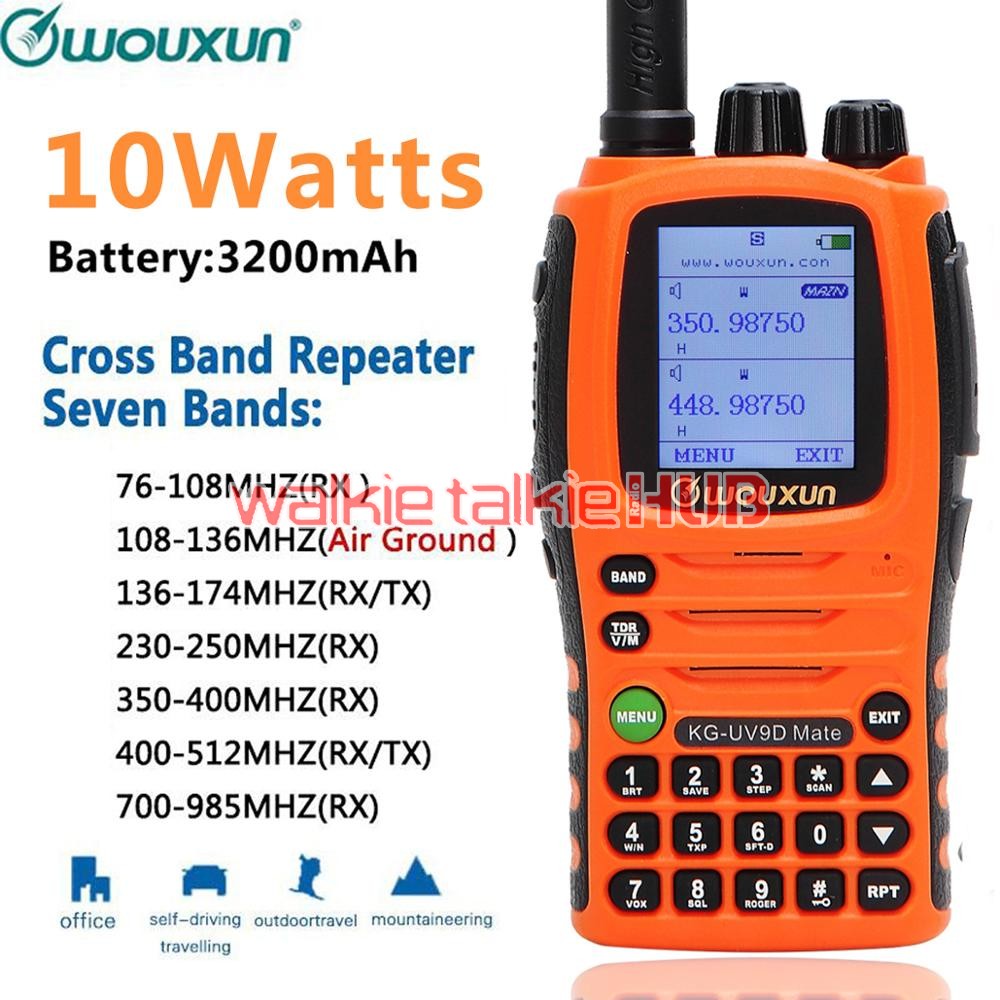

Wouxun KG-UV9D Mate 10W Powerfrul 3200mAh 7 band Air Band Cross band Repeater Amateur Radio Walkie Talkie Upgrade KG-UV9D Plus

The Wouxun KG-UV9D Mate is Upgrade version KG-UV9D Plus, High Power 10Watt, With 3200mAh  Battery, First use of orange crust design, more fashionable and beautiful!  We believe this new design will give you a Best experience!

1.10W Powerful,3200mAh Li-ion Battery
Output power: VHF: 10W, 5W,L: 1W;  UHF : H: 8W,5W,L:1W
3200mAh High Capacity battery

2.Dual Band , Cross Band Repeater , Large Color Screen

With two independent receivers for both UHF and VHF, you can listen to either the same or different bands simultaneously , large color screen can display more information

3.Seven Bands Reception and Dual Bands Transmission

Wider frequency ranges meet different demands. The frequency range is from 76MHz to 965MHz, including FM radio and Air band

4.Classic Circuit , Excellent Performance

Mature circuit design and high quality electronic components, after years of use can still maintain stable performance

5.Using High Quality Plastic and Rubber Material

High quality plastic can make the shell more robust and durable good rubber material can make the button has a good touch feel


-Frequency Range

TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)






-Twin Band Simultaneous Receiving (U-U,U-V,V-U,V-V)

-Separate Bands Duplex (U-V,V-U)

-DTMF Encoding/Decoding

-All Calls,Group Calls and Selective Calls

-Stun,Kill,Monitor and Inspection


-Programmable Non-Standard CTCSS/DCS

-Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode),Channel Groups Scan (only available in Channel Mode)

-Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency(Side Key Function Programmable)

-English Voice Guide

-Priority Scan, Priority Channel Setting

-Twin Band Simultaneous Scan

-Multi Power Save Modes

-Auto Power-OFF Timer (APO)

-Three Output Power Levels:

High / Med / Low Power Settings (10W, 5W, 1W)

-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)

-Multi Keypad Lock Modes


-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection

-Wide/Narrow Bandwidth Selection

-Backlight Brightness Selection



Frequency Range TX:136-174MHz(FM) 400-512MHz(FM)

RX:108-136MHz (AM Band Receiving)







Step 2.5/5/6.25/10/12.5/25/30/50/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20°c to 60°c
Antenna Resistance 50Ω
Voltage 7.4VDC
Weight 490g
Size 124.5×61.49×33.88(mm)
Transmitter Wide Bandwidth Narrow Bandwidth
Type of Modulation 16K F3E 11K F3E
Adjacent Channel Power ≥70dB ≥60dB
Spurious ≥60db ≥60dB
Audio Response +1~3dB(0.3~3KHz) +1~3dB(0.3~2.55KHz)
Max Frequency Deviation ±5KHz ±2.5KHz
Frequency Stability ±2.5ppm
Audio Distortion ≤5%
Ouput Power H:10W,M:5W,L:1W
 Receiving Wide Bandwidth Narrow Bandwidth
Adjacent Channel Selectivity ≤70dB ≤60dB
Inter Modulation ≤65dB ≤60dB
Spurious Response ≤70dB ≤70dB
Audio Response +1~3dB(0.3~3KHz) +1~3dB(0.3~2.55KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power Transceiver≤500mW
Sensitivity 108-136MHz (AM)-106dBM SINAD 13db

136-180MHz(AM)-119dBM SINAD 13db

230-250MHz(AM)-116dBM SINAD 13db

   350-400MHz(AM)-119dBM SINAD 12db

400-512MHz(AM)-119dBM SINAD 13db

700-985MHz(AM)-96dBM SINAD 13db


Package Contents:

1 x KG-UV9D Mate Radio Body

1 x 3200mAh Li-ion Battery

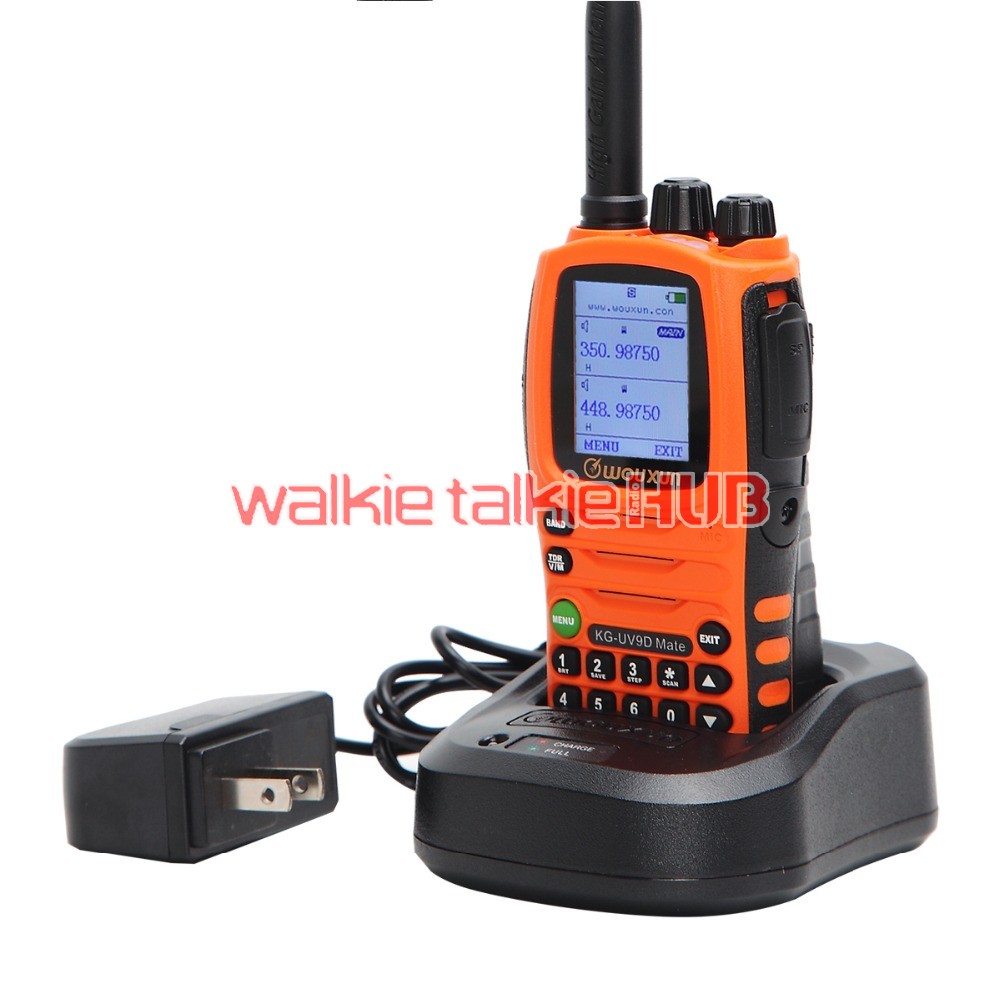

1 x Intelligent Charger

1 x Belt Clip

1 x SMA-Male Antenna

1 x Handstrap

1 x User’s Manual

Weight 1 kg
Dimensions 500 × 400 × 100 mm

Standard, As Picture 1, As Picture 2, As Picture 3
