Wouxun KG-UV9D Plus VHF136-174MHz&UHF400-512MHz Dual Band Two Way Radio TX,SEVEN BANDS RX
(KG-UV9D Upgrade Version)
TWIN BANDS TX,SEVEN BANDS RX
Duplex Repeater Mode,Same-Band/Cross-Band Simultaneous Reception)
New Functions of Plus Version:
1. UHF/VHF or VHF/UHF Cross-Band
2. Completely turn off display screen backgroud light
3. Completely turn off flickering indicator light
Features:
-Frequency Range
TX:136-174.995MHz(FM) 400-511.995MHz(FM)
RX:108-136MHz (AM Band Receiving)
136-180MHz(FM)
230-250MHz(FM)
350-400MHz(FM)
400-512MHz(FM)
700-985MHz(FM)
-Twin Band Simultaneous Receiving (U-U,U-V,V-U,V-V)
-Separate Bands Duplex (U-V,V-U)
-DTMF Encoding/Decoding
-All Calls,Group Calls and Selective Calls
-Stun,Kill,Monitor and Inspection
-CTCSS/DCS Scan
-Programmable Non-Standard CTCSS/DCS
-Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode),Channel Groups Scan (only available in Channel Mode)
-Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency(Side Key Function Programmable)
-English Voice Guide
-Priority Scan, Priority Channel Setting
-Twin Band Simultaneous Scan
-Multi Power Save Modes
-Auto Power-OFF Timer (APO)
-Three Output Power Levels:
UHF: H:4W,M:2W,L:1W VHF: H:5W,M:2W,L:1W
-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)
-Multi Keypad Lock Modes
-PTT ID
-Wide/Narrow Bandwidth Selection
-Backlight Brightness Selection
Specifications:
Intergration | ||
Frequency Range | TX:136-174.995MHz(FM) 400-511.995MHz(FM)
RX:108-136MHz (AM Band Receiving) 136-180MHz(FM) 230-250MHz(FM) 350-400MHz(FM) 400-512MHz(FM) 700-985MHz(FM)
|
|
Step | 2.5/5/6.25/10/12.5/25/30/50/100KHz | |
Channel Number | 999 | |
Work Mode | F2D/F3E | |
Operating Temperature | -20°c to 60°c | |
Antenna Resistance | 50Ω | |
Voltage | 7.4VDC | |
Weight | 490g | |
Size | 124.5×61.49×33.88(mm) | |
Transmitter | Wide Bandwidth | Narrow Bandwidth |
Type of Modulation | 16K F3E | 11K F3E |
Adjacent Channel Power | ≥70dB | ≥60dB |
Spurious | ≥60db | ≥60dB |
Audio Response | +1~3dB(0.3~3KHz) | +1~3dB(0.3~2.55KHz) |
Max Frequency Deviation | ±5KHz | ±2.5KHz |
Frequency Stability | ±2.5ppm | |
Audio Distortion | ≤5% | |
Ouput Power | UHF: H:4w,M:2W,L:1W | |
VHF:H:5W,M:2W,L:1W | ||
Receiving | Wide Bandwidth | Narrow Bandwidth |
Adjacent Channel Selectivity | ≤70dB | ≤60dB |
Inter Modulation | ≤65dB | ≤60dB |
Spurious Response | ≤70dB | ≤70dB |
Audio Response | +1~3dB(0.3~3KHz) | +1~3dB(0.3~2.55KHz) |
Signal to Noise Ratio | ≥45dB | ≥40dB |
Audio Distortion | ≤5% | |
Audio Power | Transceiver≤500mW | |
Sensitivity | 108-136MHz (AM)-106dBM SINAD 13db
136-180MHz(AM)-119dBM SINAD 13db 230-250MHz(AM)-116dBM SINAD 13db 350-400MHz(AM)-119dBM SINAD 12db 400-512MHz(AM)-119dBM SINAD 13db 700-985MHz(AM)-96dBM SINAD 13db
|

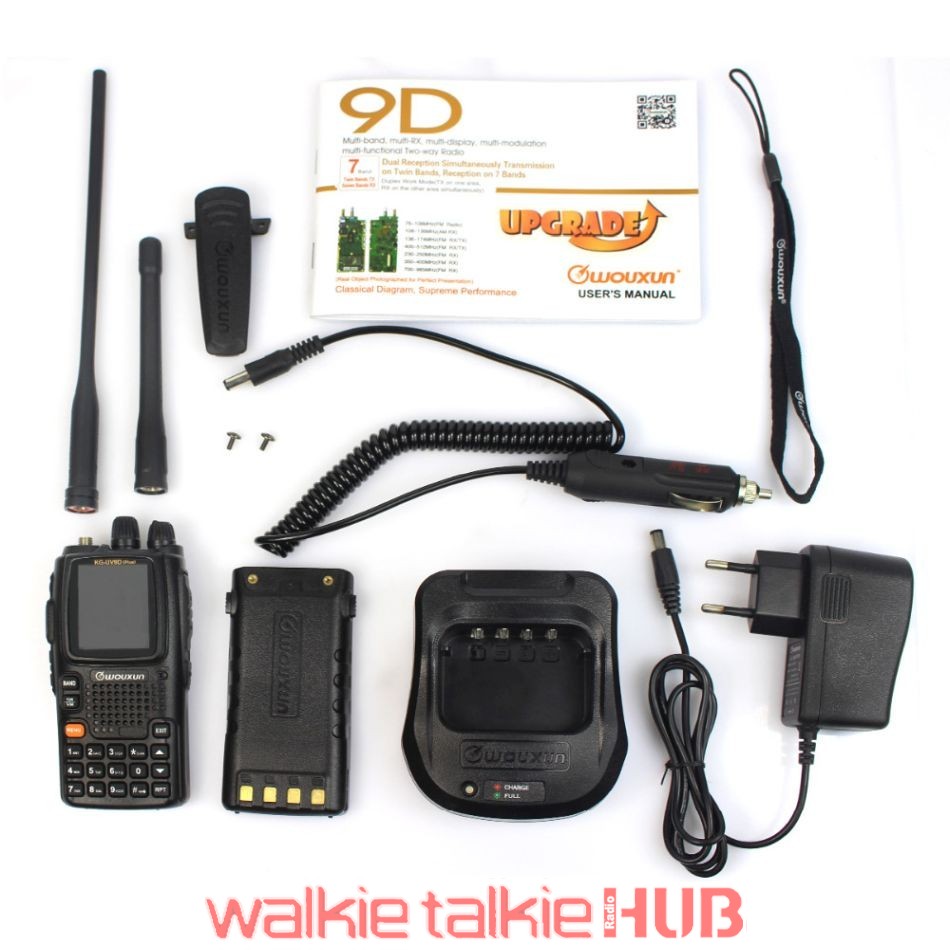

Package Contents:
1× KG-UV9D plus Radio Body
1× 2000mAh Li-ion Battery
1× Intelligent Charger
1× Belt Clip
2× SMA-Male Antenna
1× Handstrap
1× User’s Manual
1× Earpiece
