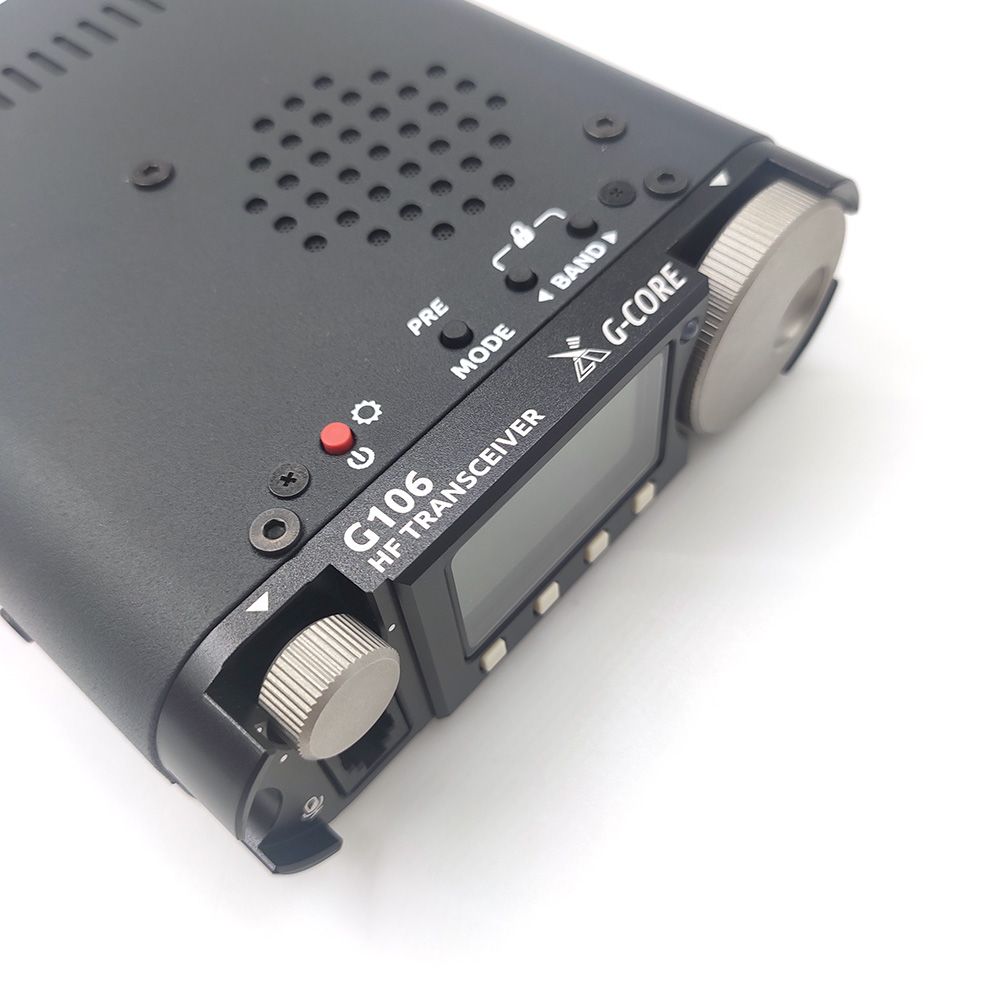

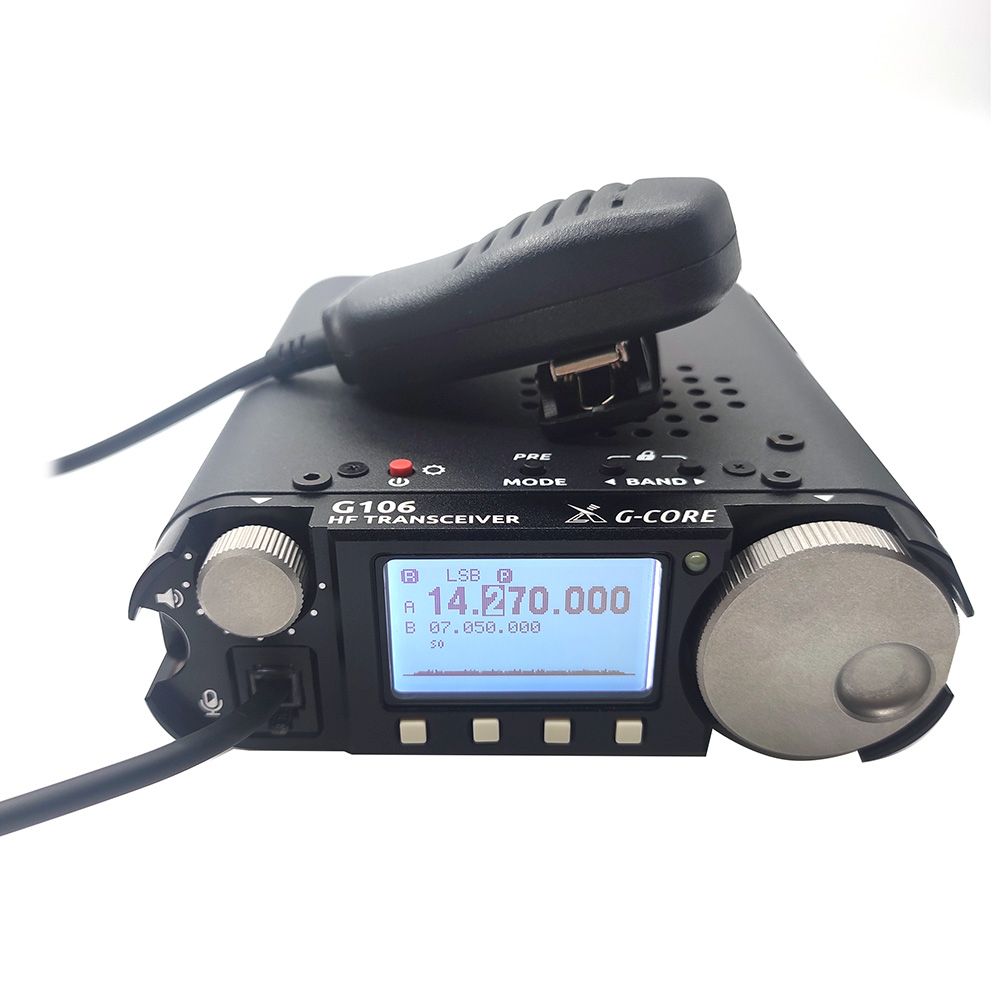

XIEGU G106 SDR HF Transceiver 3.8-29.7MHz SSB/CW/AM Three Modes WFM Broadcast Receiving 5W Mobile Amateur Radio

Sale!

$359.00

Quantity Discount (%) Price
1 $359.00
2 - 4 1.95 % $352.00
5+ 5.29 % $340.00

Description

XIEGU G106 SDR 3.8-29.7MHz SSB/CW/AM Three Modes WFM Broadcast Receiving 5W Mobile Amateur Radio

G106 is a 5W portable QRP model with SDR circuit structure which uses 16bit-CODEC sampling and can

deliver superior performance. The whole machine has SSB/CW/AM three modes and extra WFM (88~108MHz)

receiving function, allowing you to listen to local FM broadcasts while communicating. Equipped with a CW digital

filter with three bandwidths, it can help you connect to more and farther radio stations. With the external DE-19

digital adapter (optional), it can be easily connected to the computer and complete FT8 communication.

As an entry-level portable SDR transceiver, G106 will be a good helper for you to play CW and FT8.

Basic Features:

 High-performance SDR core circuit

 Compact and robust structure
 Transmission and receiving of all amateur frequency bands within 3.8~29.7MHz
 WFM broadcast receiving
 Shortwave full-range continuous receiving
 Amateur data communication available
 Computer online control available

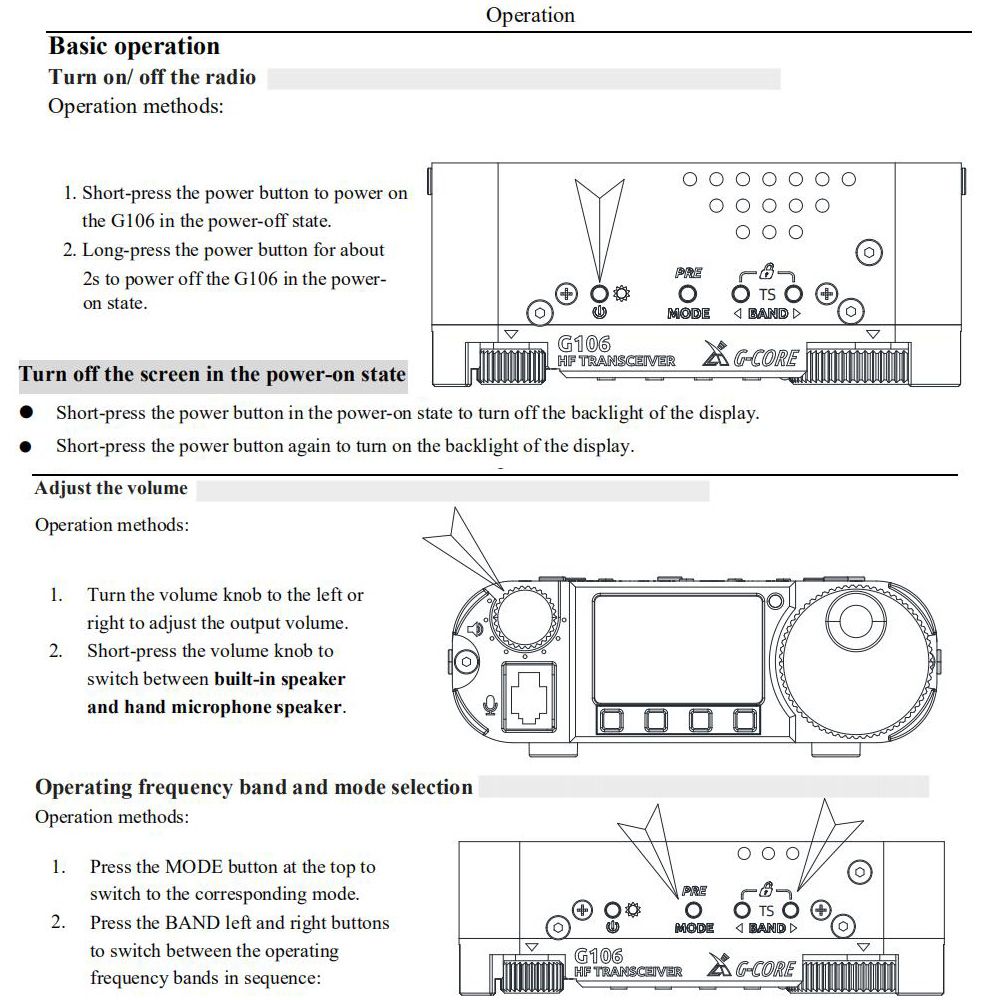

Please read this Manual carefully for a better experience and full understanding on operation of the G106.

Parameters:

Receiving frequency: 0.55~30MHz
88~108MHz(WFM)

Transmitting frequency:

3.5~3.9MHz
7.0~7.2MHz

10.1~10.15MHz
14.0~14.35MHz

18.068~18.168MHz
21.0~21.45MHz

24.89~24.99MHz

28.0~29.7MHz

Operating mode: SSB/CW/AM

WFM (receive only)

Receiving sensitivity: CW: 0.25uV @10dB S/N

SSB: 0.5uV @10dB S/N

AM: 10uV @10dB S/N

Frequency stability: ±1.5ppm within 30min after power on

@25°C: 1ppm/hour

Transmitting power: ≥5W @13.8V DC

Transmitting spurious suppression: ≥50dB

Audio output power: 0.3W

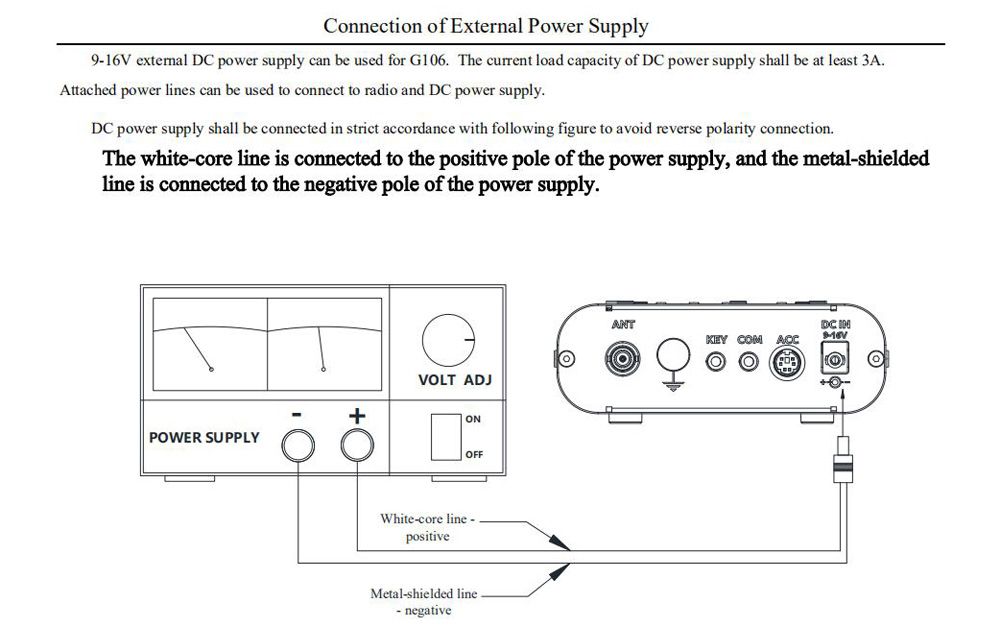

Operating voltage: 9~15V DC

Standby current: 0.37A @Max

Transmitting current: 2.8A @Max

Dimensions: 120*40*135 (mm)

Weight: About 720g (only host)

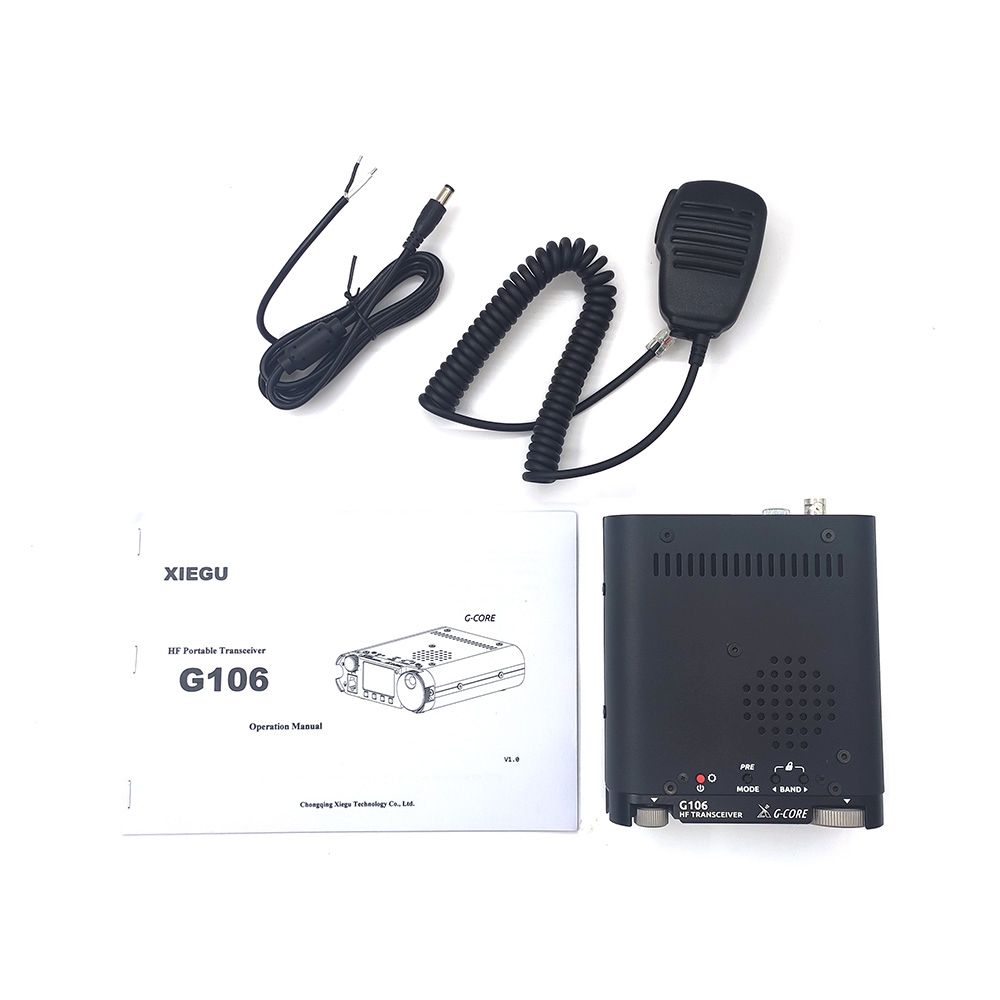

Packing list:

G106 host 1 set

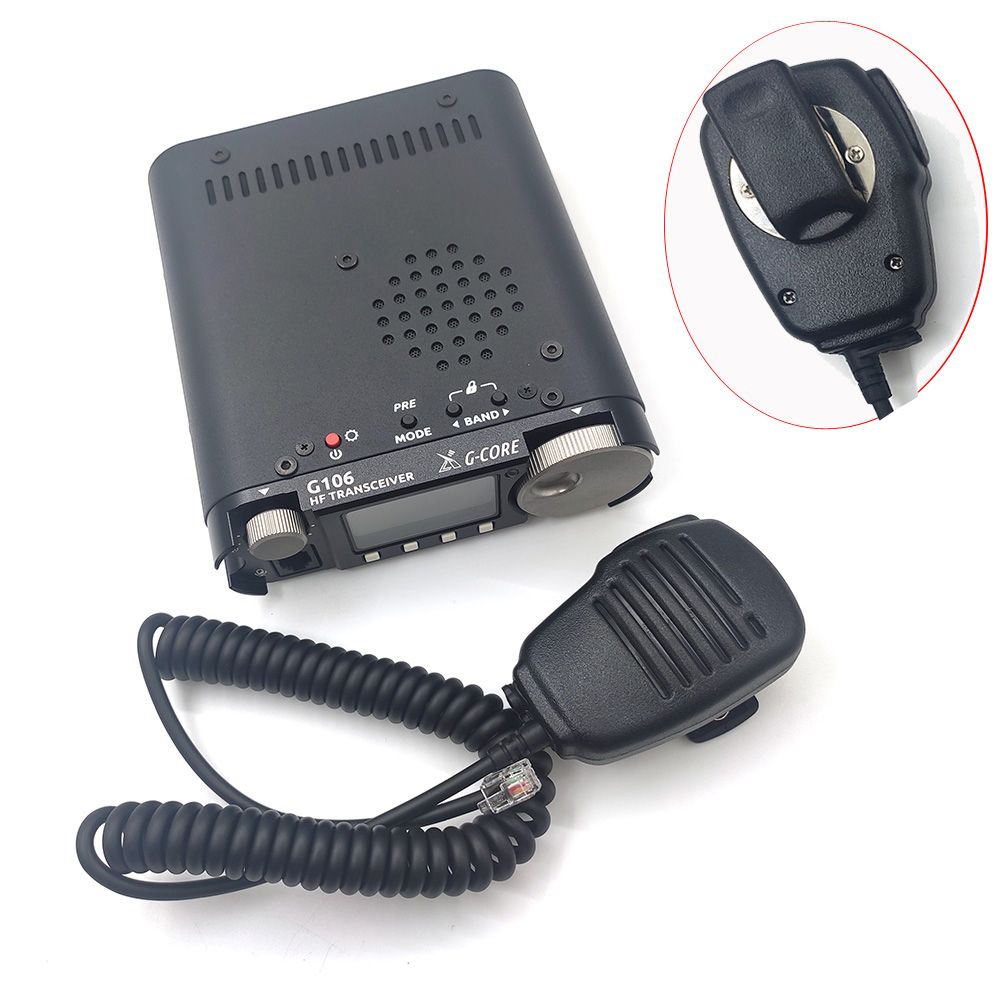

Standard hand microphone 1

Power line 1

Warranty card 1

Manual 1

Certificate of conformity 1
