Xiegu X108G Outdoor Edition 0.5-30MHz HF Mobile CB Transceiver Two Way Radio
Features:

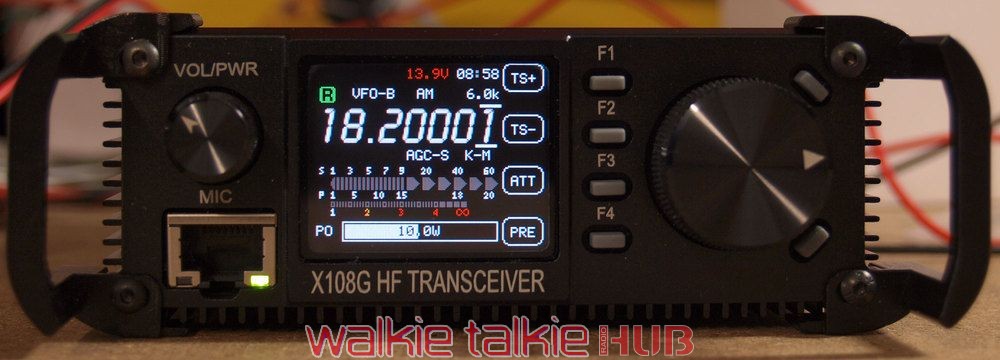

X108G Outdoor is X108’s upgraded version, It is a compact single conversion HF transceiver covering 0.5 to 30 MHz. Special optimized the Receive Channel, It has lower Background noise; and higher SNR, Up to 0.25uV&12dB;Equipped with a 2.3k SSB filter and a 500 Hz CW narrow-band filter, Excellent filtering characteristics. It include a switchable AGC circuit, Large dynamic range. Other features include a preamplifier and signal attenuator, RIT control for SSB use, and RF output power variable from 1 to 20 Watts. The front panel meter can display incoming signal strength, RF output power and VSWR, and the transceiver includes high VSWR protection circuitry to guard against potential damage to the output stage caused by antenna mismatching. The RF output stage features imported RF MOS tubes and APC circuitry for constant output across all bands. A noise blanker (NB) module is available as an option, as is a high stability 0.5 ppm TCXO module. Its performance to meet the FCC (or CE) certification requirements. X108G outdoor version equipped with a color OLED solid-state screen, Ignoring the strong outdoor sunlight irradiation, still clear. Has four full aluminum handle for better protect the machine.
Specifications:
| Receiver Features | |
| Mixer | Double balanced diode mixer for extended dynamic range |
| Filter | Narrow band double tuned bandpass filters covering all HF amateur frequencies including WARC bands, Six element LPF |
| AGC | IF channel AGC for constant gain |
| Preamplifier & signal attenuator | Switchable preamplifier & signal attenuator |
| IF crystal filter | High performance narrow band IF crystal filter with shape factor up to 1.7 |
| VFO for operation | Twin VFO for split operation |
| Parameters Table | S-meter/RF Power/SWR via front panel display |
| NB | The NB module can be added |
| Transmitter Features | |
| Transmitter | RF output power adjustable between 1&20 Watts; Dedicated MOS RF power tube for superior performance; High VSWR protection circuitry for output stage; Inbuilt CW keyer with adjustable rate |
| Technical | |
| Receive Frequency | 0.5-30MHz |
| Transmit Frequency Range | All WARC Bands (HAM Band) |
| Working Mode | SSB(J3E),CW(A1A), AM(A3E) |
| Stray Radiation Rejection | ≥40dBc |
| Radio Frequency Output Power | 20W |
| Frequency Stability | 0.5ppm Turned on Power is 5 miunutes -10°c~+60°c |
| Spurious Response Rejection | ≥40dBc |
| Working Voltage | 12V~14.5V DC |
| Receiving Standby Current | 600mA(max) |
| Emission Current | 7.5A(max) |
| Carrier Suppression | ≥45dBc |
| Receiver Dynamic Range | Low noise, single conversion super heterodyne type |
| Receiver Sensitivity | 0.5μV(PRE ON, ≤2.0MHz),0.3μV(PRE ON,>2.0MHz) |
| Antenna Impedance | 50Ω |
| Antenna Connector | SO239 |
| Dimension | 120×45×180(mm)(Handle and knob place Not included) |
PACKAGE Contains:

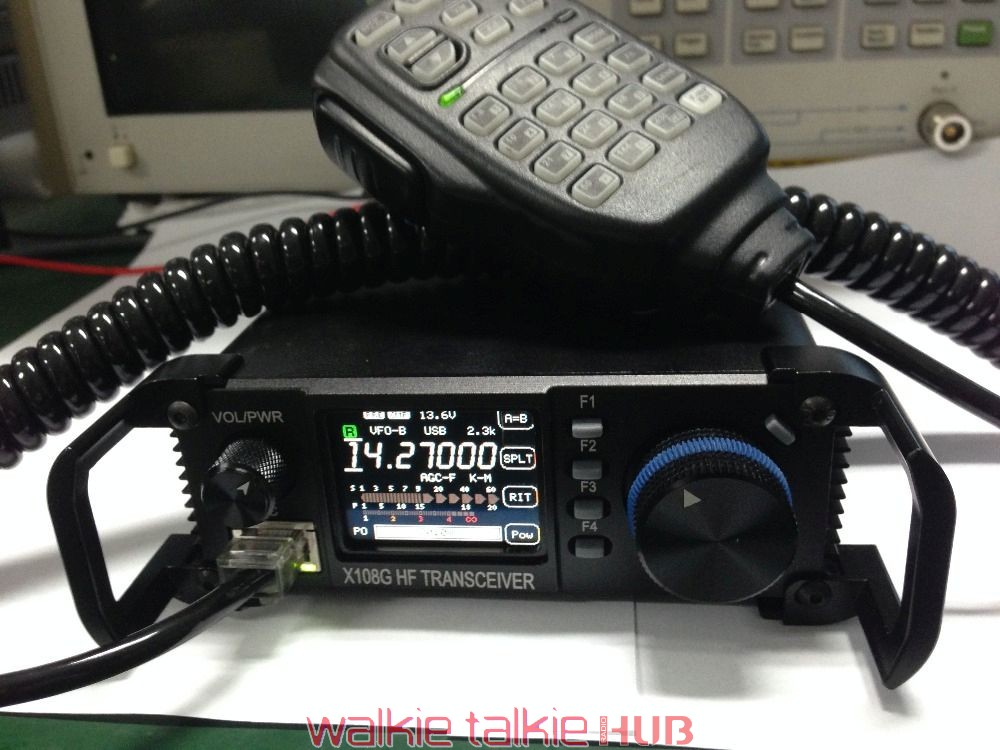

1× X108G Outdoor Version HF Mobile Transceiver
1× Hand Microphone
1× Power Supply Cable
1× USB Cable
1× Operating Manual
