Xiegu X5105 Outdoor Ver HF 50MHz Transceiver with IF Output All Bands Covering SSB CW AM FM RTTY PSK

Xiegu X5105 OUTDOOR VERSION 0.5-30MHz 50-5MHz 5W 3800mAh HF TRANSCEIVER with IF Output All Bands Covering SSB CW AM FM RTTY PSK



Features:

ALL BANDS COVERING: With a built-in power output of 5W, Xiegu X5105 is a highly portable transceiver working at HF+6m band, covering all modes of HF, 50MHz band (SSB/CW/AM/FM/RTTY/PSK).

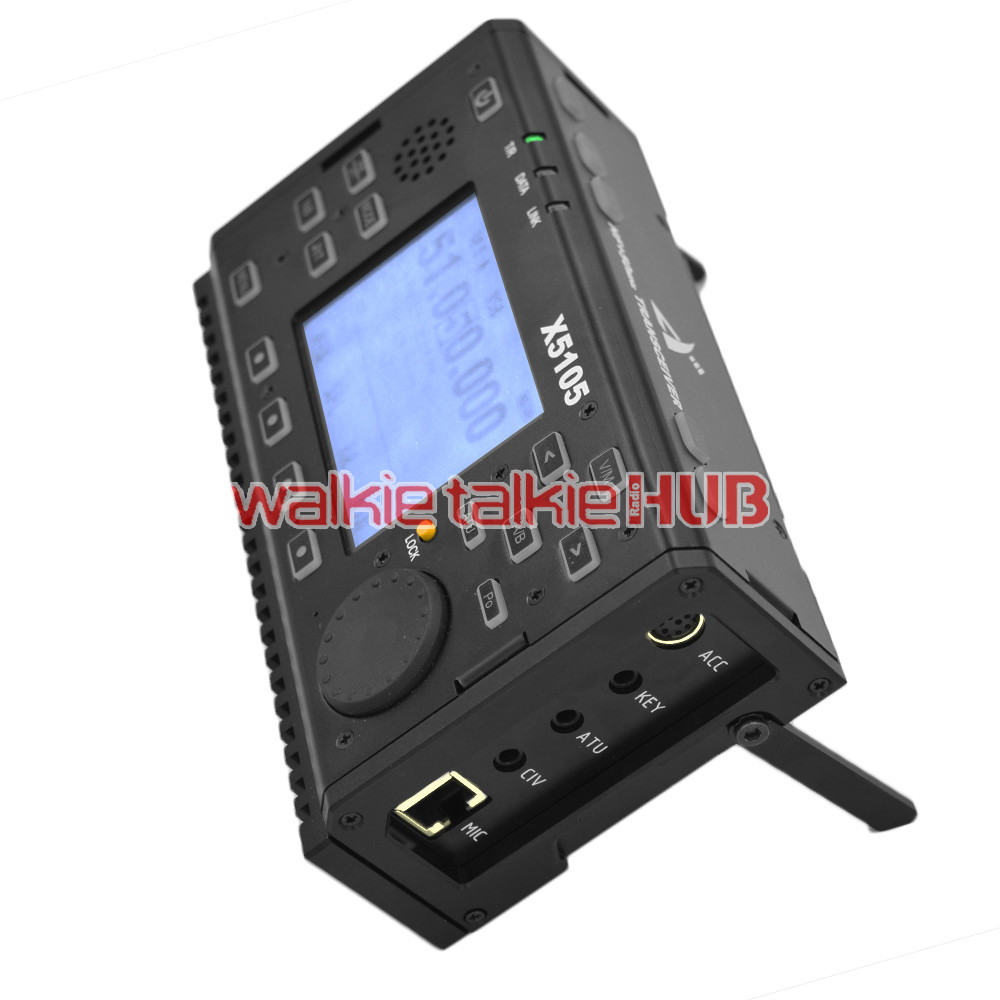

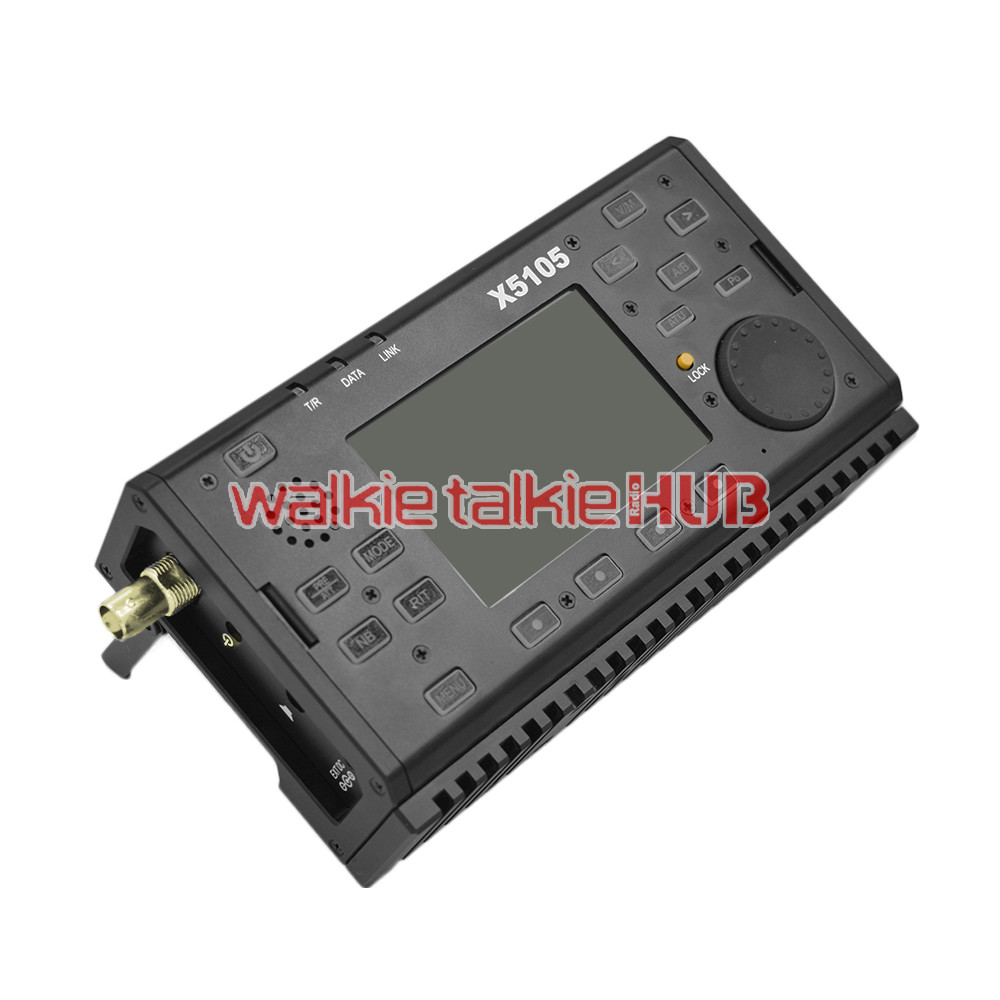

GREAT HARDWARE: Xiegu X5105 is equipped with a 3.6 inch large LCD screen and built-in 3800mAh large capacity battery pack. Besides, it also comes with a trestle for desktop operation.

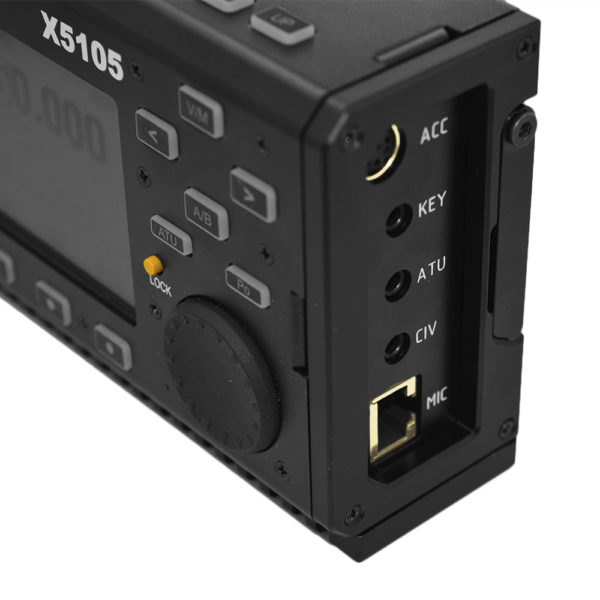

IF OUTPUT: With IF signal output (1 IF: 70.455MHz, 2 IF: 10.695MHz, 3 IF 455kHz (FM)).

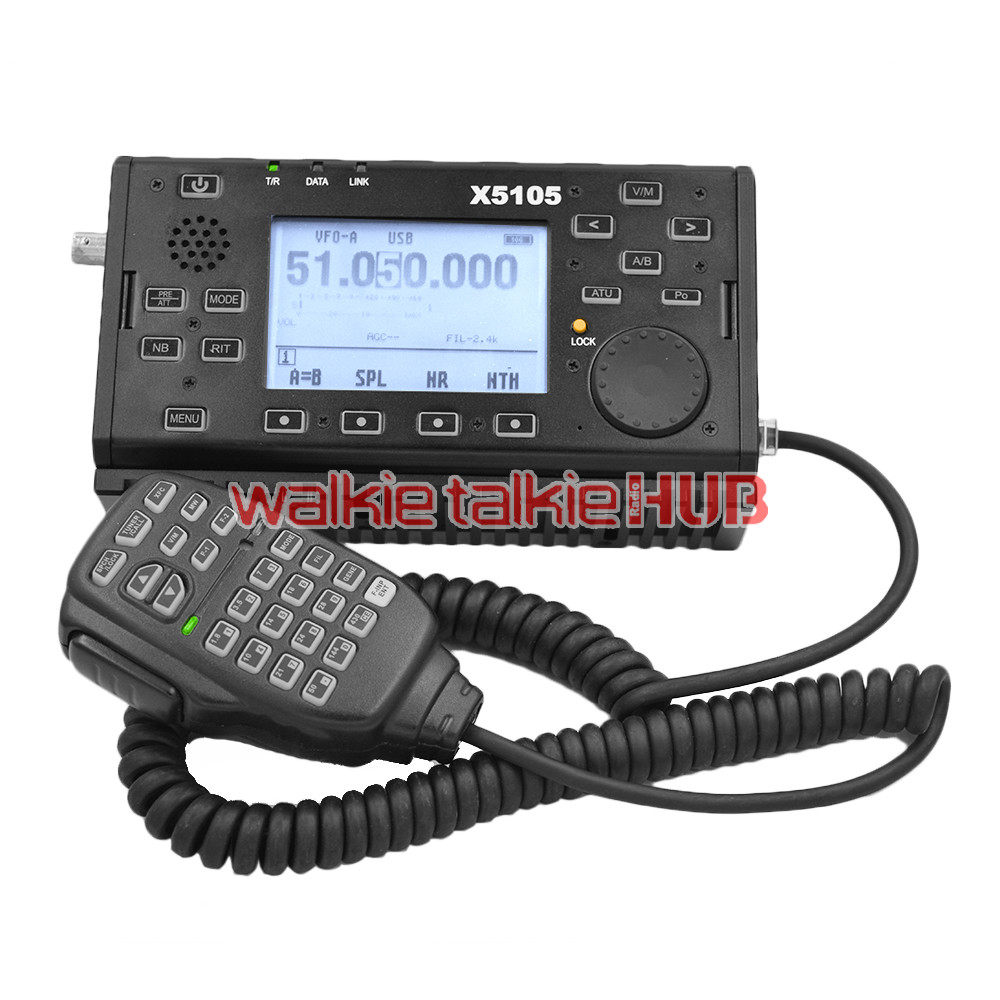

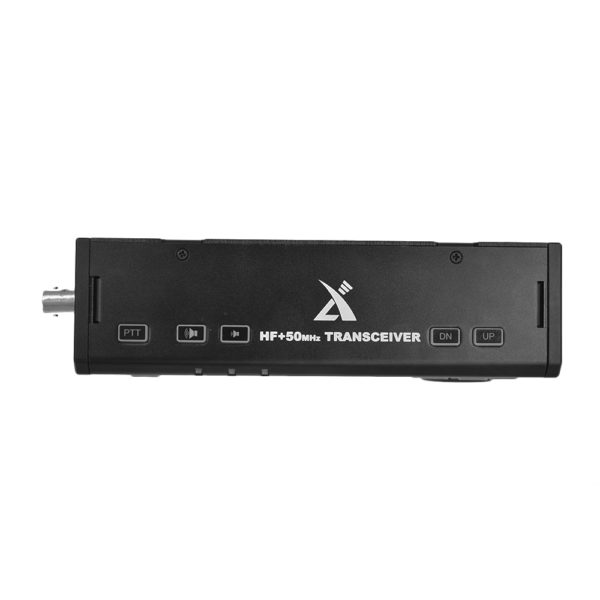

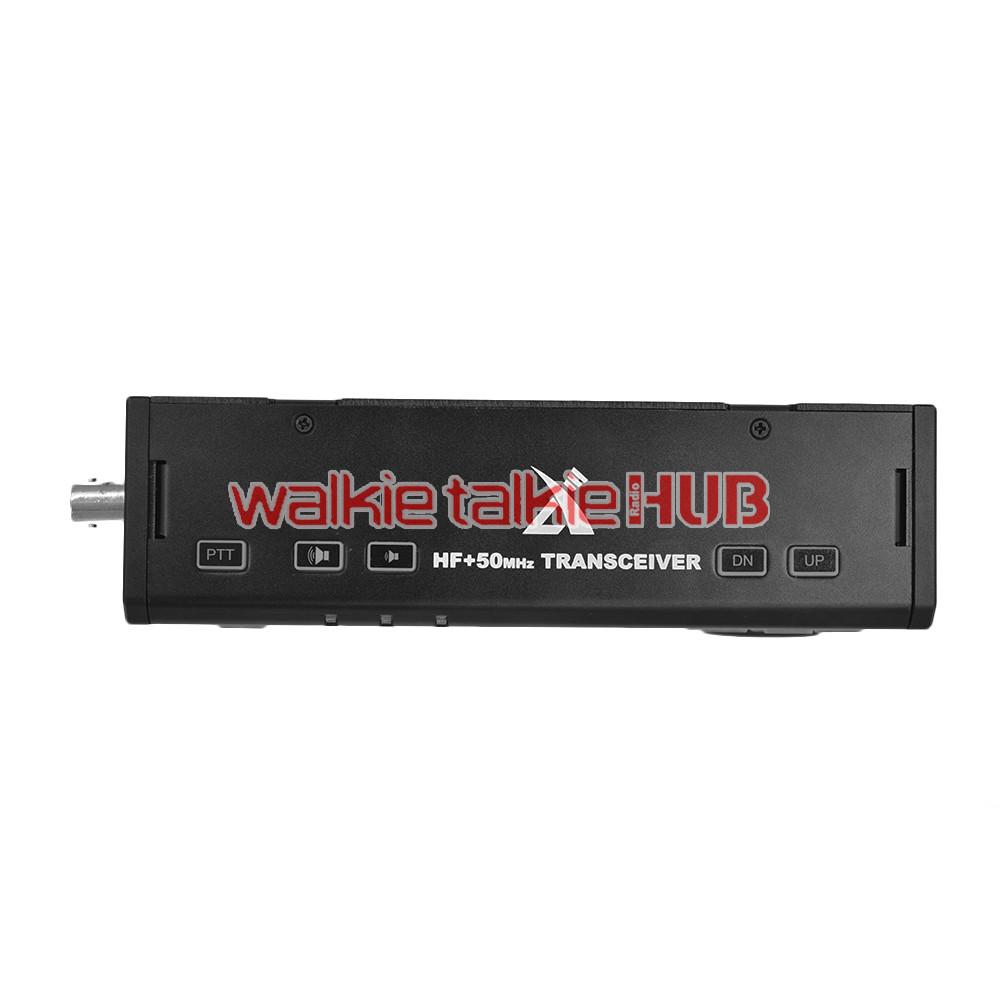

PORTABLE SIZE: Very small in size and ultra portable (6.3*3.9*1.8in) with an original speaker mic, convenient to carry.

WHAT’S MORE: Built in ATU; Built in AF-DSP digital noise reduction processor.



Basic Specifications

Frequency range:

• Receive: 500kHz-30MHz 50MHz-54MHz
• Transmitting: 160 meters -6 meters (Amateur band only)

Operating mode: A1A(CW), A3E(AM)，J3E(USB/LSB), F3E(FM)

minimum frequency stepping: 1Hz

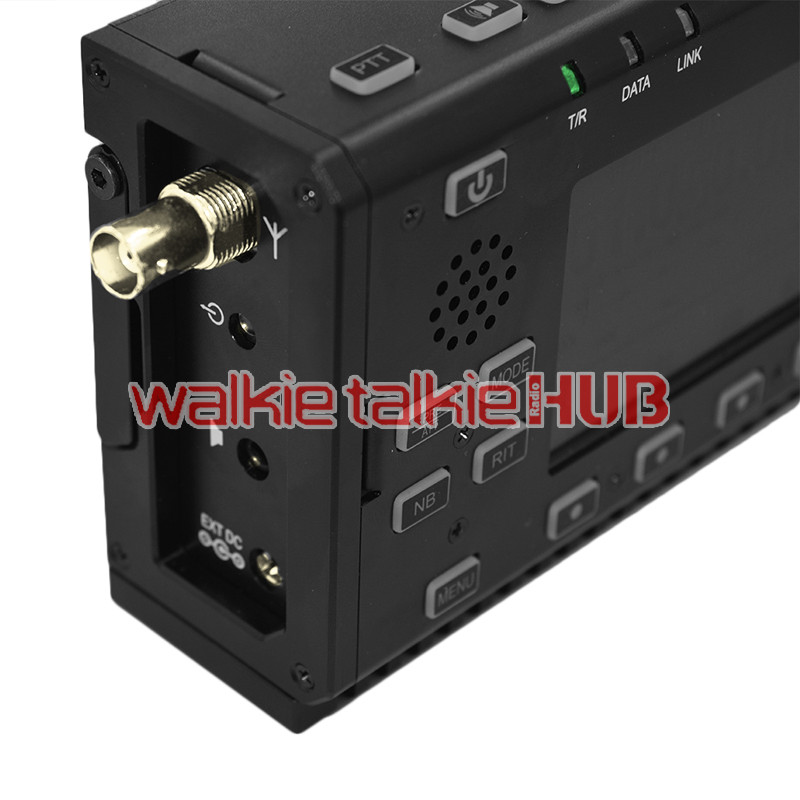

Antenna impedance: 50Ω

Operating temperature range: -10℃ ~ +60℃

Frequency stability: after turn on the radio 1-60 minutes is ± 2ppm, at 25℃: 1ppm/hour

supply voltage: normal: 13.8VDC + 15%, negative grounding

Operating voltage: 9.0-15.0VDC, negative grounding

Current consumption: receive: 660mA at Max transmit: 2.5A at Max

Battery capacity: 3800mAh at 12V

Dimensions: 160*100*46mm / 6.3*3.9*1.8in [does not include protrusion]

Weight: 0.94Kg[host only]

Receiver Parameters:

Circuit form: double-conversion superheterodyne with audio DSP

IF frequency: 1 IF: 70.455MHz, 2 IF: 10.695MHz, 3 IF 455kHz (FM)

Image rejection ratio: 70dB

IF suppression: 60 dB

Audio output: 0.6W (8Ω, ≤10% THD)

Audio output impedance: 4-16Ω

Selectivity:

SSB-6dB: 2.4kHz/-60dB: 4.6kHz

AM-6dB: 6.0kHz/-60dB: 25.0kHz

FM-6dB: 12.0kHz/-60dB: 25.0kHz

Transmitter Parameters

Transmitter power, 5W(SSB/CW/FM), 1.5W(AM carrier), at 13.8VDC

Modulation mode: SSB balanced modulation/AM low level amplitude modulation/FM Variable reactance frequency modulation

FM Maximum frequency swing: ±5kHz

spur reduction: -45dB

Carrier suppression: ＞40dB

Sideband spurious: ＞50dB

SSB frequency response: 400Hz-2800Hz（-6dB）

Microphone impedance: 200-10k(conventional 600Ω)



Package Content:

1 x Xiegu X5105 Transceiver

1 x Power Cable

1 x Speaker Mic

1 x User Manual
