YAESU FTM-350R Dual Band Mobile Radio Car Transceiver UHF VHF Professional Station Vehicle Radio
| Product Type: | Yaesu FTM-350 two-stage radio (B3 Asia edition ) |
| Recommended for: | |
| Output power : | 50/50 (W) |
| Frequency range: | Reception : 0.5-1.8,76-108,108-137,137-174,174-250,300-420,420-470,
470-800,800-1000MHZ Launch : 136-174.222-225 (USA) 420-470MHZ |
| The number of channels : | 1000 ( a ) |
| Band: | Two-stage dual display |
| Encryption: | CTCSS, CDCSS |
| Dimensions: | 157 × 66 × 33.5 ( mm ) length × width × thickness |
| Body weight: | 2.1 ( kg ) |
| Operating voltage: | 13.8V |
| Battery capacity: | – MAh |
| Battery Standby time: | Hours ( theoretical calculation ) |
| Normal working hours : | Hours ( theoretical calculation ) |
| Antenna Interface: | L16-K |
| Origin: | Japan (YAESU Yaesu ) |
| Original configuration : Host ( fuselage and panel ) ,
digital hand microphone , power cord, fuselage bracket, screws and spare fuses |
|
| Operating temperature range : | -20 ~ 60 |
| Antenna Impedance: | 50 |
| Stepping channel : | 5,6.25,8.33, (9) 10,12.5,15,20,25,50,100 200 KHz |
| Modulation: | F3E, F2D, F2A |
| Sensitivity: | 0.2V |
| Frequency stability: | 2.5ppm |
| Clutter and Harmonic : | 7.5uW |
| Audio output power: | 500mW |
| Hum and Noise: | > 40dB (12.5KHZ);> 45dB (25KHZ) |
| Spurious response rejection : | 60dB |
| Audio Response: | 300-3000HZ |
| SNR: | 40dB |
| Intermodulation : | 60dB |

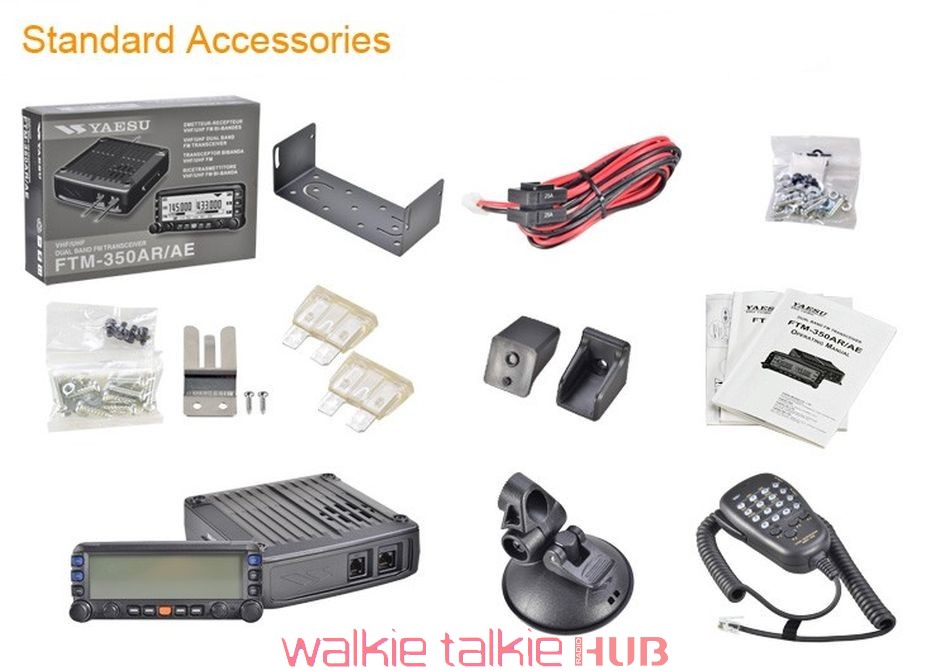

What includes in Standard Package:
1 x Mobile Radio
1 x Speaker Mic.
1 x Power Cable
1 x Installation Bracket
1 x Installation Kits (Screws .etc)
1 x User Manual
