YANTON TM-7700D 25W 4G Lte POC GPS APRS VHF/UHF Dual Band Mobile Radio

Original price was: $299.00.Current price is: $205.00.

+ Free Shipping

YANTON TM-7700D 4G LTE POC GPS APRS VHF UHF Dual Band 25W Mobile Radio

4G LTE POC + VHF UHF Dual Band Mobile Radio 25W Ham Radio Station Walkie Talkie Communciator Network Radio

Network Radio 3G 4G LTE POC Public Radio Station VHF UHF Dual Band Mobile Radio Repeater

Cross-Mode Repeat , SIM Card Radio , Analogue Radio

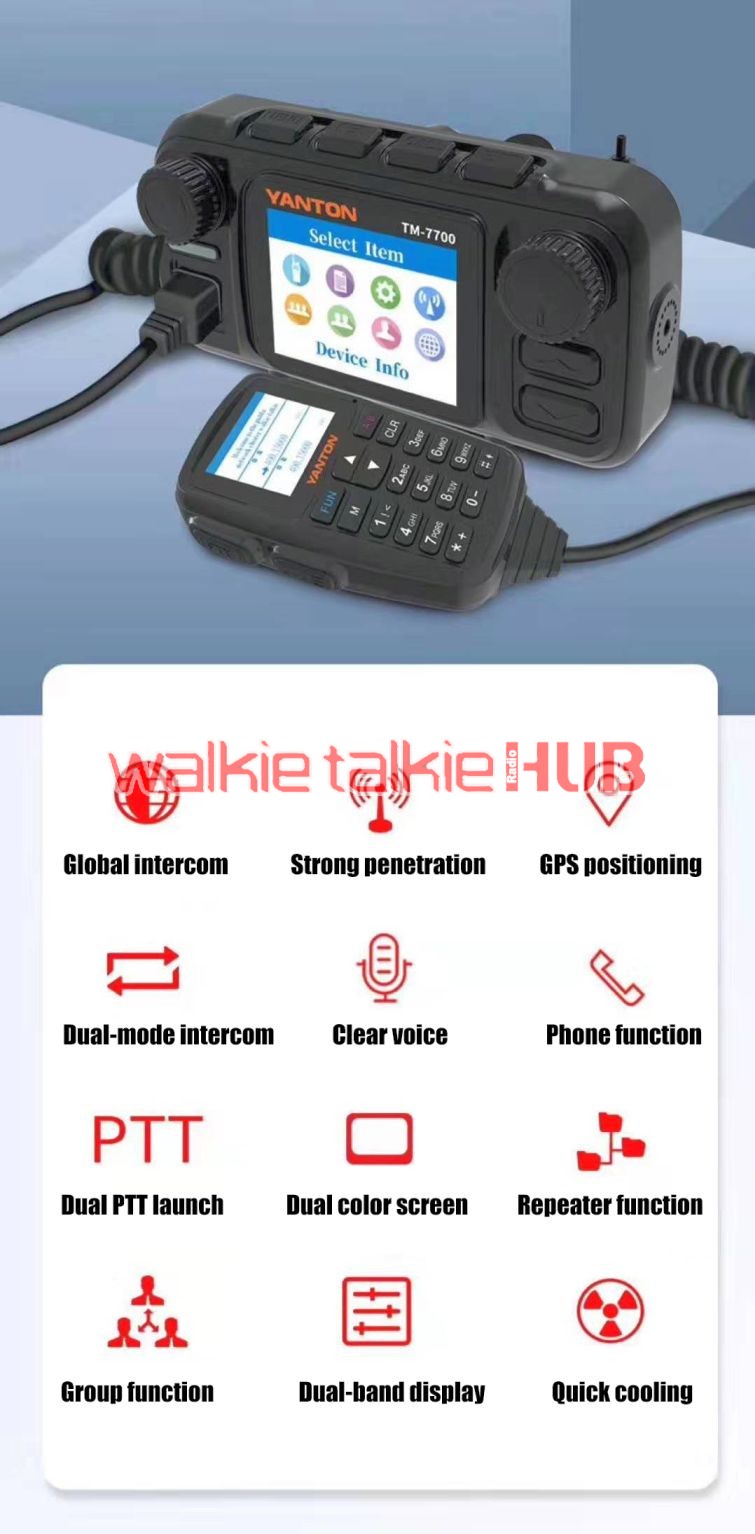

Main features:

Analog Output Power 25W

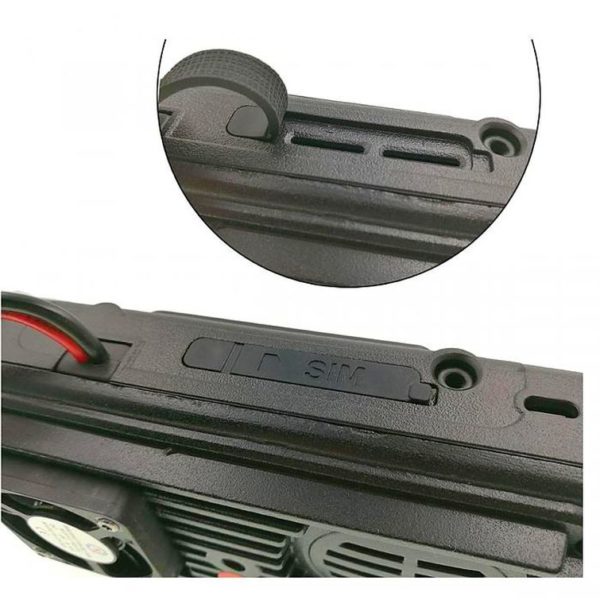

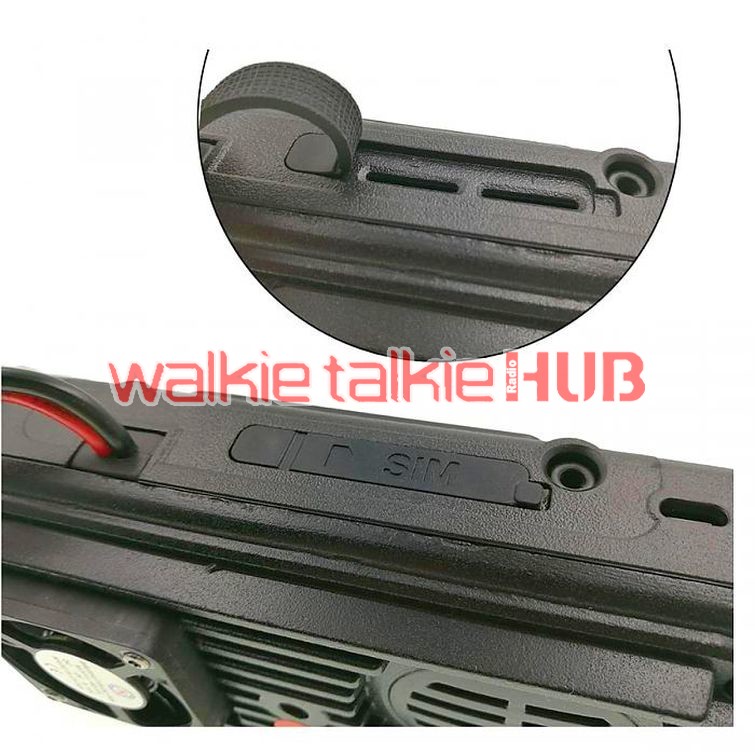

Dual SIM Card Slots

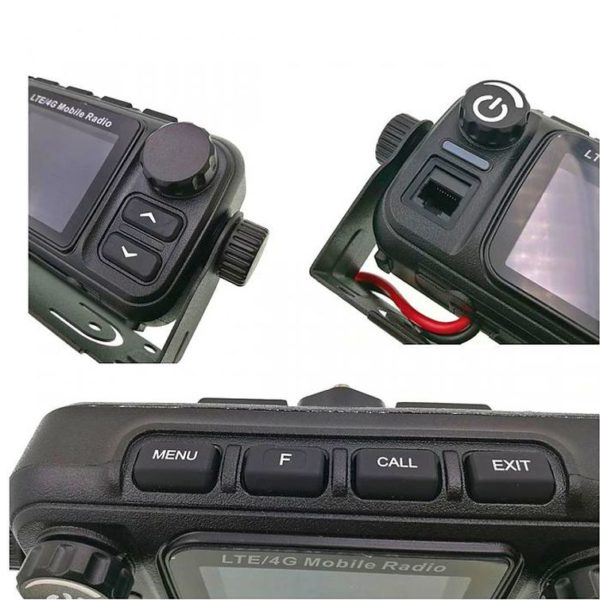

Dual PTT Keys

GPS Function

SOS 6 APRS Function

Network Signal Strength Prompt

Repeater Function

Phone Function

Group Call, Private Call, Friends Call, Emergency Call

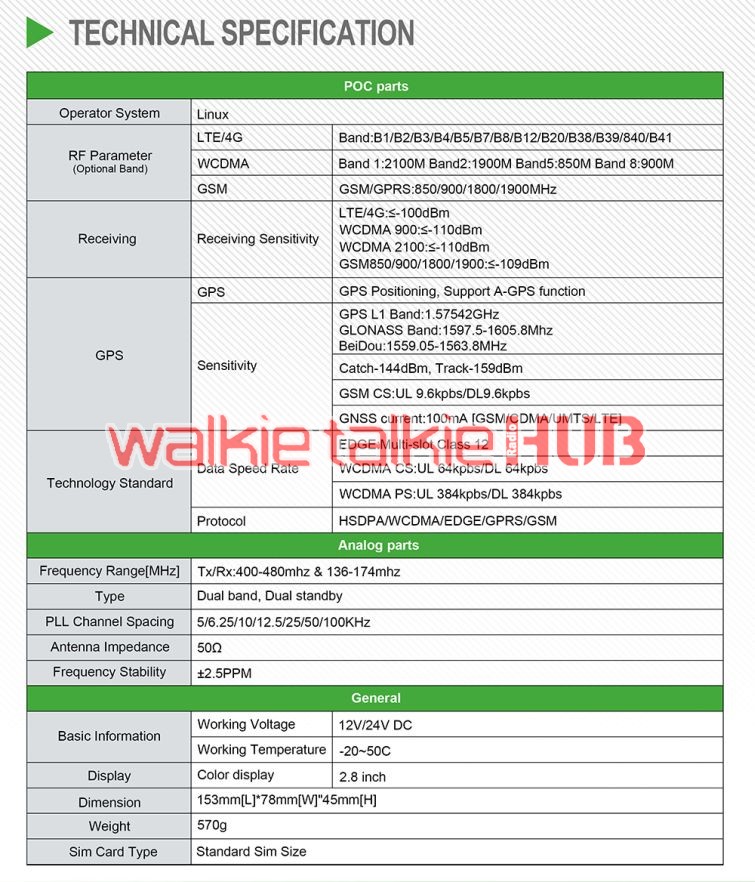

Type Parameter Item
Operator System Linux Real PTT Platform
Basic Information SIM Card type Standard SIM card
Color Screen 2.8inch
Voltage DC 12-24V Power Supply
Working Current 7.4V-240V  (Lower than 7.4V will not work)
Working Temperature -20~50℃
Dimensions(mm) 153mm(L)*78mm(W)*45mm(H)
Weight 570g
RF Parameter LTE/4G B1/B2/B3/B4/B5/B7/B8/B12/B20/B38/B39/B40/B41
WCDMA Band 1: 2100M

Band 2: 1900M

Band 5: 850M

Band 8: 900M

GSM/GPRS Band 1: 1900M

Band 2: 1800M

Band 5: 850M

Band 8: 900M

Receive sensitivity LTE/4G:≤-100dBm
WCDMA 900/2100:≤-110dBm
GPS GPS GPS Positioning, Support A-GPS function
GPS sensitivity GPS L1 Band:1.57542GHz
GLONASS Band:1597.5-1605.8Mhz
Catch-144dBm, Track-159dBm
GSM CS:UL 9.6kpbs/DL9.6kpbs
Technology Standard Data Speed Rate EDGE: Multi-slot Class 12
WCDMA CS: UL 64kpbs/DL 64kpbs
WCDMA CS: UL 384kpbs/DL 384kpbs
Frequency Range TX/RX: UHF 400-480MHz & VHF 136-174MHz
Analog Mode Dual Band, Dual Standby
Antenna Impedance 50Ω
Frequency Stability ± 2.5PPM

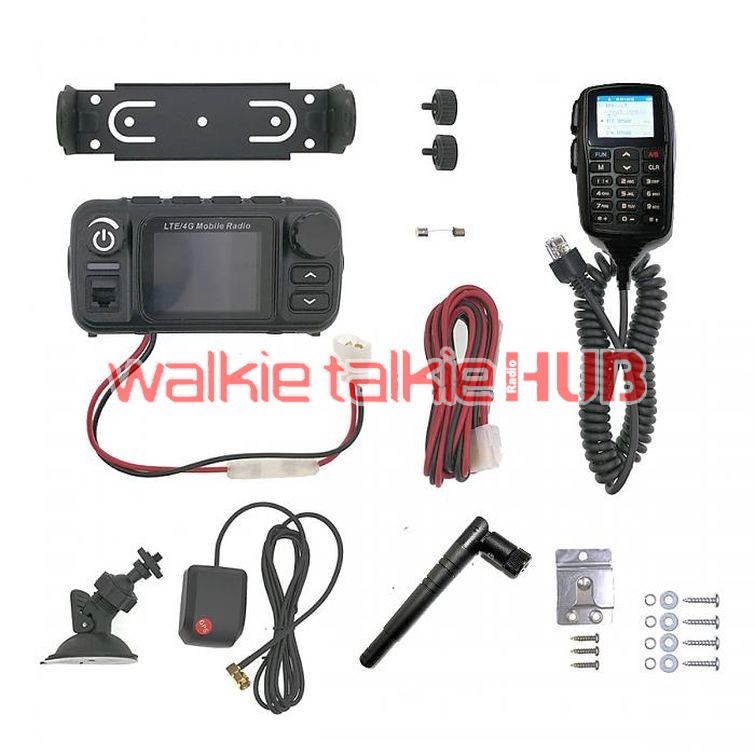

Package include:
1 x YANTON TM-7700D UHF VHF Dual Band Analog Network POC Radio

1 x GPS antenna
1 x LCD Microphone
1 x Battery Cable
1 x Bracket
1 x English Manual

1 x Programming Cable


Weight 1 kg
Dimensions 600 × 400 × 100 mm
