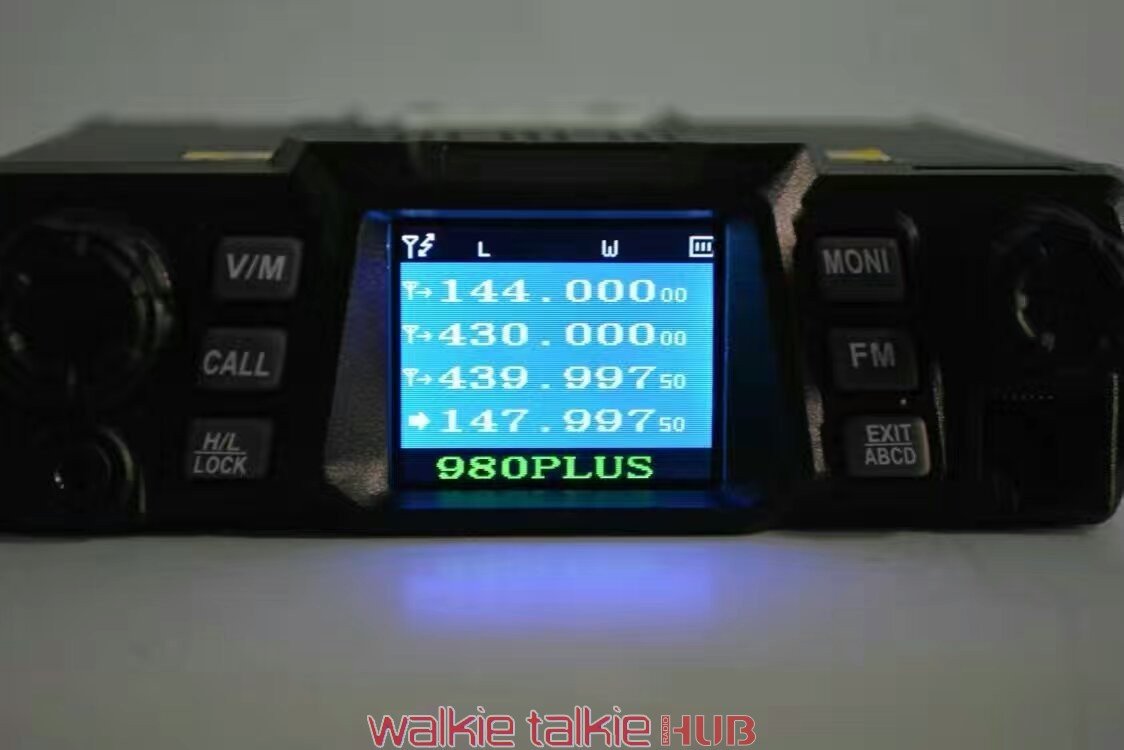

QYT 980PLUS 75W VHF 55W UHF Dual Band Quad Standby Mobile Radio
Features:
Dual Band,Quad-standby
Output Power 75W(VHF), 55W (UHF)
External speaker/PTT
Mini Size
PC Program
Remote Stun,Remote Activate,Remote Kill
DTMF Function, 2 tone, 5 tone
PTT-ID Code
Repeater Function
Long-distance Communication
FM Radio
Alarm Function
LCD Monitor
Specifications:
Item number:980PLUS
Frequency Range:VHF:136-174MHz UHF:400-480MHz
Number of Channel:200
Channel Spacing:25KHz 20K 12.5K
Phase lock step:5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz
Working Voltage:13.8V DC±15%
Squelch way:CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability :±2.5ppm
Operating Temperature:-20-+60
Dimension(W x H x D):103(W) x 47(H) x 126(D)mm
| Receiver | ||
| Broadband | Narrow band | |
| Sensitivity | < 0.25V | < 0.35V |
| Channel choice | >70dB | >60dB |
| Intermodulation | >65dB | >60dB |
| Spurious Rejection | >70dB | >70dB |
| Audio response | +1 – -3dB(0.3-3KHz) | +1 – -3dB(0.3-2.55KHz) |
| Signal to noise ratio | >45dB | >40dB |
| Audio distortion | <5% | |
| Audio output power | >2W 10% | |
| Transmitter | ||
| Broadband | Narrow band | |
| Output power | 75W/55W(VHF/UHF) | |
| Modulation Mode | 16K F3E | 11K F3E |
| Channel Power | >70dB | >60B |
| Signal to noise ratio | >40dB | >36dB |
| Parasitic harmonic | >60dB | >60dB |
| Audio response | +1- -3dB(0.3-3KHz) | +1- -3dB(0.3-2.55KHz) |
| Audio distortion | <5% | |
Package includes:
1x QTY 980PLUS Dual Band Quad Standby Mobile Radio
1x Microphone(version 2)
1x Car Power Cable
1x Clip for Speaker Microphone
1x Mounting Bracket
1x Screw Sets
