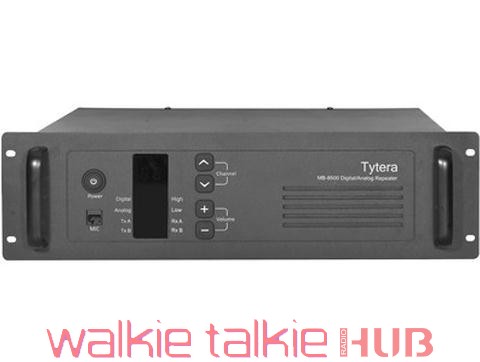

TYT Digital and Analog combined DMR UHF VHF Repeater MD-8500 Compatible with MOTOROLA 2 TDMA mode 2 slots
DMR Digital & Analog Professional Walkie Talkie Repeater
(Built-in Duplexer, RF Output Power 45W,100 Memory Channel)
IMPORTANCE:
The difference between Transmitting Frequency and Receiving Frequency for UHF VHF Band should be 10MHz Maximum due to the duplexer exists.
Features:
100% continuous duty cycle
Integrated heat sink and back panel fan provides the good design for 100% continuous duty cycle at 45W output.
Smart detection analog and digital signal
Mix mode in program software realizes the smart detection of analog and digital signals in single channel.
3U rack mount size
3 U rack mount professional design, with two handles, leave enough internal space for duplexer, possible for desktop or wall mount installation.
100 Memory channels
Channels button and LED monitor design in front-panel offer you the clear indication of 100 memory channels and easy switch operation between different channels.
QT/DQT with multi-decode
The MD-8500 decodes 5 QT/DQT groups in one single channel. This function is useful for sharing a channel with multiple groups.
Bright, clear LED indicate
Up to 8 LED lights integrated in front-panel. It is useful to check the status of operation mode including analog/digital, power level, over temperature status.
Automatic voltage and temperature protection
When the operate voltage, temperature, voltage standing wave ratio exceed the pre-set value, it switches to low power or power off automatically.
Improved audio quality
Ensures the improved audio quality and larger coverage under noisy environment comparing to traditional analog.
Specifications:
| General | |
| Frequency Range | 136-174MHz / 400-470MHz |
| Channel Capacity | 100 |
| Channel Spacing | 12.5KHz/25KHz |
| Operating Temperature | -30°c~ +60°c |
| Operating Voltage | 220V/110V AC ±15%/13.8V DC ±15% |
| Frequency Stability | ±0.5 ppm |
| Dimension | 133(H)483(W)330(D)mm |
| Weight | 12kg |
| Transmitter | |
| RF Power Output | 45W |
| Frequency modulation | 16KφF3E/11KφF3E(Aanalog) 4FSK(Digital) |
| Antenna Impedance | 50Ω |
| Modulation Limiting | ±2.5KHz 12.5KHz, ±5KHz 25KHz |
| Radiated Spurious Emission | –36dBm < 1GHz –30dBm > 1GHz |
| FM Noise | 45dB 25KHz 40dB 12.5KHz |
| Modulation Distortion | ≤3% |
| Receiver | |
| Reference Sensitivity(Analog) | 0.35uV/-116dBm(12 dB SINAD) 0.22uV/-120dBm(Type) |
| Reference Sensitivity(Digital) | 0.22uV/-120dBm 0.35uV/-116dBm |
| Adjacent channel Selectivity ETSI: | 60dB 12.5KHz 75dB 20/25KHz |
| Intermodulation ETSI: | 75dB |
| Spurious Response Rejection | 70 dB |
| Rated Audio Output | 0.5W |
| FM Noise | 45dB 25KHz 40dB 12.5KHz |
| Rated Audio Distortion | ≤3% |
Package Contents:
1× Tytera MD-8500 UHF or Tytera MD-8500 VHF Repeater
1× AC Power Cable
1× 13.8V DC Power Connector
1× USB Programming Cable with CD Drive
1× User Manual
