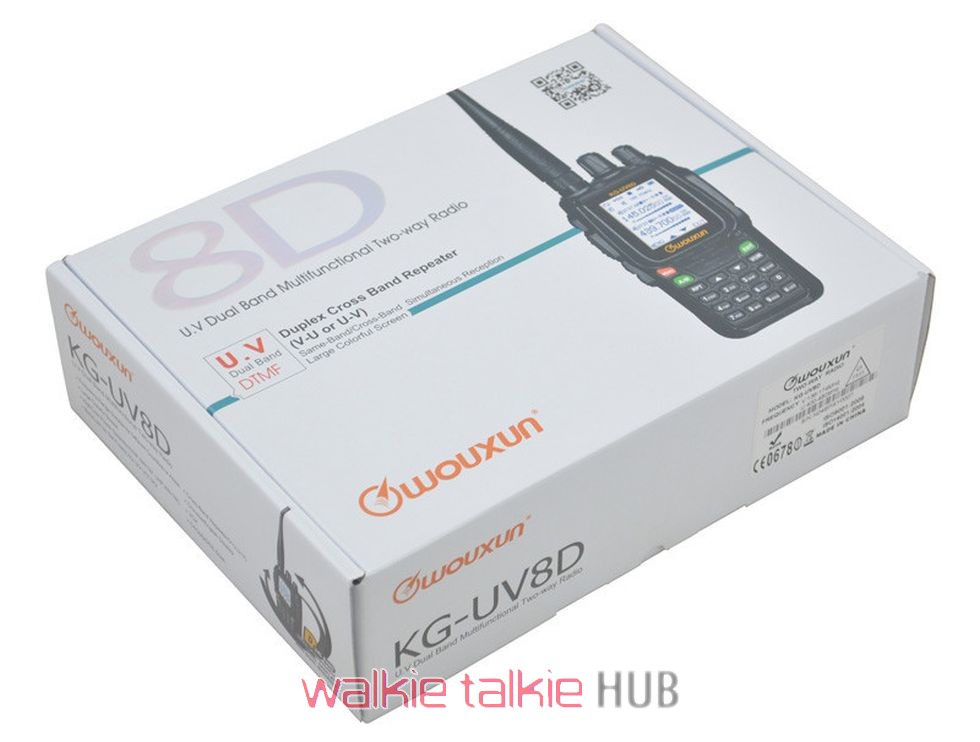

WOUXUN KG-UV8D UHF VHF Dual Band Multi-functional DTMF Radio


& Free Shipping
SKU: 170230 Category:
Guaranteed Safe Checkout

WOUXUN KG-UV8D VHF:136-174MHz & UHF 400-480MHz Dual Band Multi-functional DTMF Two-way Radio

(Duplex Repeater Mode,Same-Band/Cross-Band Simultaneous Reception)


1. Duplex Repeater(VHF to UHF or UHF to VHF)

2. Duplex Work Mode(TX on one area while RX on the other area simultaneously)

3. Dual Receiving (RX on the same/different bands of A&B areas simultaneously)

4. Large Colorful Screen

5. Frequency Range: 136-174 & 400-480MHz

6. 999 Memory Channels

7. Dual Display, Dual Band Dislay on Large Screen,Two Independent Operation System

8. Frequency Offset and Direction Programmable in Repeater Mode UHF/VHF or VHF/UHF Cross-Band Repeater

9. Strong and Stable Output Power(VHF:5W/UHF:4W)

10. VOX

11. QT/DQT Encoding/Decoding,QT/DQT Scan

12. Multi Definition for Sidekeys

13. Incoming Message Display(Caller ID display)

14. DTMF Encoding & Decoding

15. All Calls,Group Calls And Selective Calls

16. SOS Function

17. Priority Scan Function

18. Remote Alarm

19. Wide/Narrow Bandwidth Selection(25KHz/12.5KHz)

20. Voice Guide:Chinese/English

21. Chinese/English Screen Display

22. Bright Flashlight IIIuination

23. Single-Tone Pulse Frequency:2100Hz/1750Hz/1000Hz/1450Hz (signaling for activating repeater)

24. Reverse Frequency

25. Stopwatch


Intergration Receiving Wide Narrow Transmitter Wide Narrow
Frequency Range 136-174MHz&400-480MHz Adjacent Channel Selectivity ≤70dB ≤60dB Type of Modulation 16k F3E 11k F3E
Step 5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz Inter Modulation ≤65dB ≤60dB Adjacent Channel Power ≥70dB ≥60dB
Channel Number 999 Spurious Response ≤70dB ≤70dB Spurious ≥60dB ≥60dB
Work Mode F2D/F3E Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz) Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz)
Operating Temperature -20~+40 Signal to Noise Ratio ≥45dB ≥40dB Max Frequency Deviation ±5KHz ±2.5KHz
Antenna Resistance 50 Audio Distortion ≤5% Frequency Stability ±2.5ppm
Voltage 7.4VDC Audio Power Transceiver≤ 500mW Audio Distortion ≤5%
Weight 490g Sensitivity UHF/VHF:0.25µV(12dB SINAD) Output Power 5W/1W(VHF)


Size 124.5×61.49×33.88(mm)

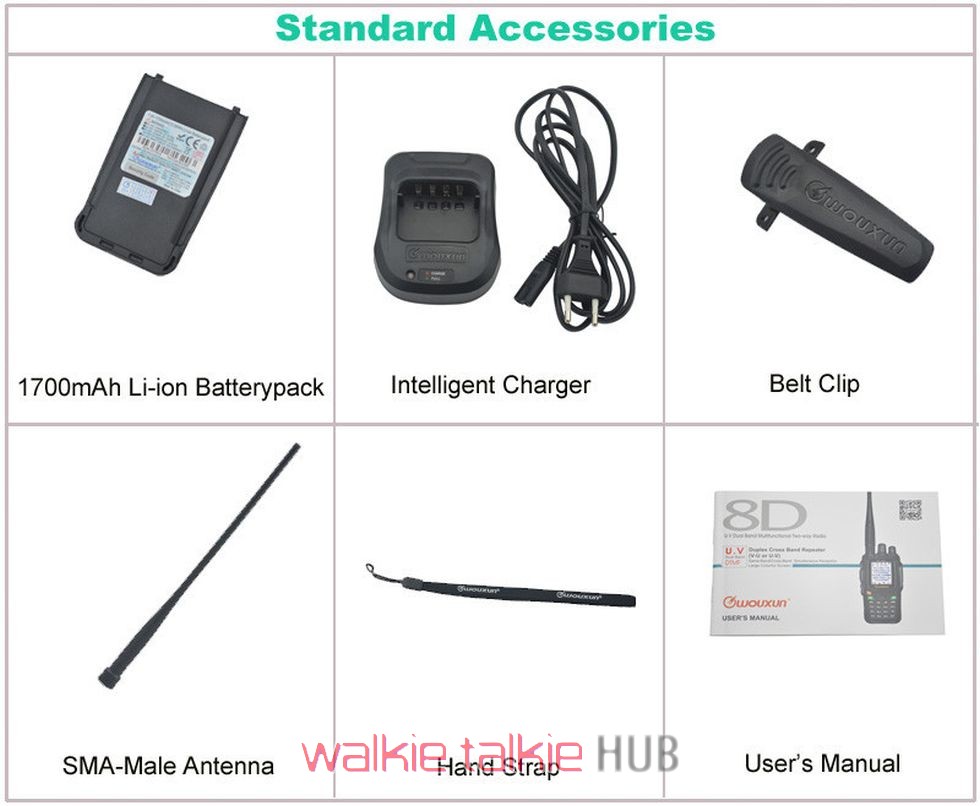

Package Contents:

1× KG-UV8D Radio

1× 1700mAh Li-ion Battery

1× Intelligent Charger

1× Belt Clip

1× SMA-Male Antenna

1× Handstrap

1× User’s Manual

1× PTT Earpiece


Weight 0.8 kg
Dimensions 180 × 180 × 60 mm
