Tytera MD-9600 TYT DMR Digital Mobile Radio


& Free Shipping
SKU: 170722 Categories: ,
Guaranteed Safe Checkout

Tytera MD-9600 TYT DMR Digital Mobile Radio

The TYT MD-9600 DMR Digital Mobile Radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTOTRBO series using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF or VHF frequencies for easy migration to digital technology.


1000 Channels

136-174MHz VHF Frequencies

400-480MHz UHF Frequencies

Repeater Capable

AMBE+2™ Digital Vocoder

Encryption (Digital Mode Only)

Private Call/Group Call/All Call

45W/25W Output Power

Hi/Low Power Selectable

Emergency Alarm

Channel Scan

Priority Scan

Talk Around

Color LED Display

Lighted LED Keypad

Text Messaging

LED Status Light On Hand Mic

Low Battery Alert

Battery Saver

Timeout Timer


Audible Button Beeps

Voice Prompts

Cloning Capable

PC Programmable (Optional Software and Cable Required)

Programmable Multifunction Key


Digital/Analog Combined


Lone Worker Mode


One Year Manufacturer Warranty

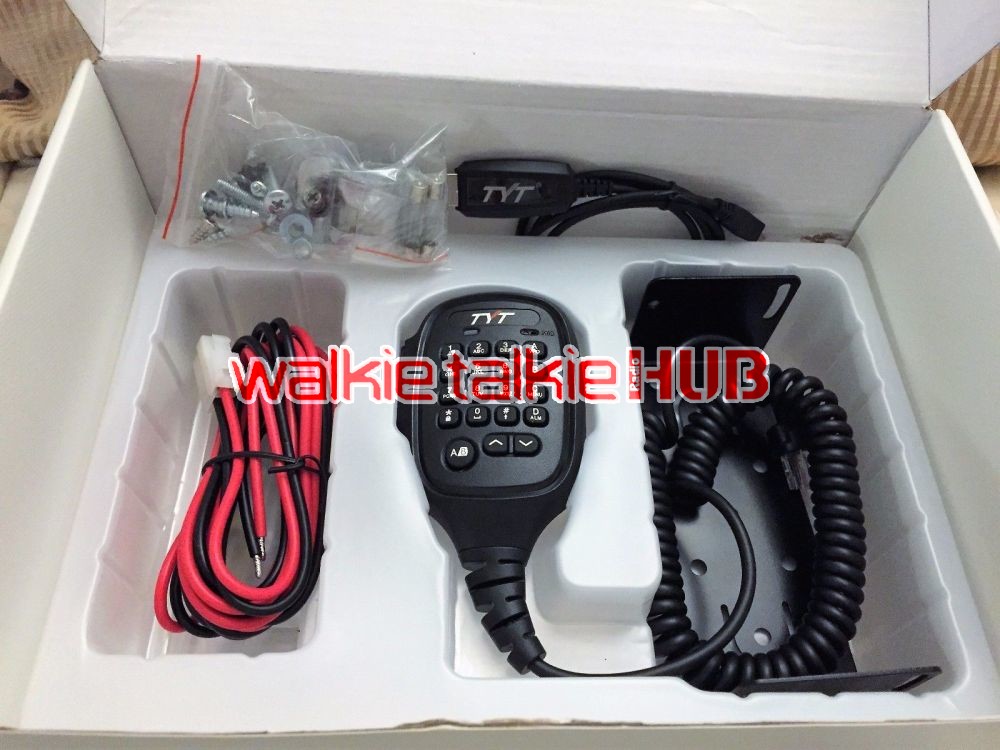

Included with the Tytera MD-9600

Tytera TYT MD-9600 DMR Digital Mobile Radio

Hand Microphone

Owners Manual

Tytera MD-9600 Specifications

Dimensions: 5.62 x 1.96.4 x 6.88 inches (143 x 50 x 175 mm)

Antenna connector type: SO-239 (UHF Female)

The MD-9600 supports analog and digital modes so you can enjoy the best of both. It provides dual band support, operating on both 400-480MHz UHF frequencies and 136-174MHz VHF at up to 50 watts VHF and 45 watts UHF, using Time-Division Multiple-Access (TDMA) digital technology. This digital mobile radio is also compatible with Motorola TRBO and DMR Tier II.

The MD 9600 offers 250 zones with 16 channels for each zone. It has built-in CTCSS/DCS, channel scan, priority scan, short text message features, draft message edit, contacts check and edit, and encryption. It also has remote stun/kill and activate.

As for calling features, the MD-9600 has them, including Private Call, Group Call and All Call. It also includes Lone worker mode, power save mode, low power alarm, an emergency alarm and VOX capability. Plus, it’s PC programmable and firmware upgradeable to boot, providing the maximum flexibility and versatility to rival any other digital mobile radio on the market!

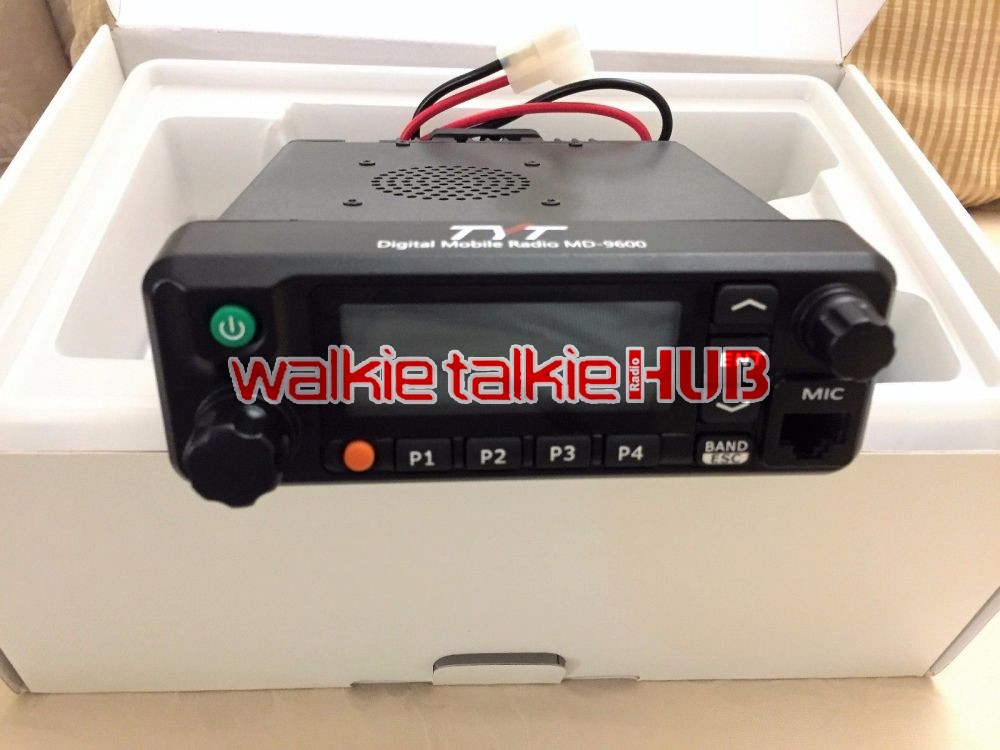

The TYT MD-9600 gives you a color LCD display with clear, sharp text for an easy read from your dash or console. It also gives you programmable function keys on the console and a hand mic with programmable keys, two built-in LEDs and a DTMF keypad and for full access to its menu of powerful digital and analog features. No doubt about it, the MD-9600 gives you all the value of a premium digital mobile radio at an amazingly low analog price!

Type: Amateur HF/VHF/UHF transceiver
Frequency range: TX: 26 – 33MHz / 47 – 54MHz / 136 – 174MHz / 400 – 470MHz
RX: 26 – 33MHz / 47 – 54MHz / 108 – 135MHz / 136 – 180MHz / 320 – 512MHz / 700 – 950MHz(wireless not include)
Mode: TX: FM/NFM
RF Power output: Hi: 50/50/50/35 W
Mid1: 20/20/20/20 W
Mid2: 10/10/10/10 W
Lo: 5/5/5/5 W
Receiver system: Double conversion superheterodyne
1st IF: 46.05 MHz (Left band), 47.25 MHz (Right band)
2nd IF: 450 KHz
Sensitivity: <0.2 uV (12 dB SINAD)
Selectivity: FM: 12 KHz (-6 dB), 30 KHz (-60 dB)
Image rejection: N/A
Voltage: 13.8 VDC
Current drain: RX: 500 mA (Squelched)
TX: Max 8.5 A
Impedance: 50 ohms, SO-239
Dimensions (W*H*D): 140*42*168 mm
Weight: 1 Kg
Manufactured: China, 2012-201x

809 memories. CTCSS/PL and DCS. DTMF-ANI
5-tone/2-tone. Built-in scrambler.
Compare this one with FT-8900R!

Weight 2.5 kg
Dimensions 200 × 200 × 80 mm

No GPS, With GPS
