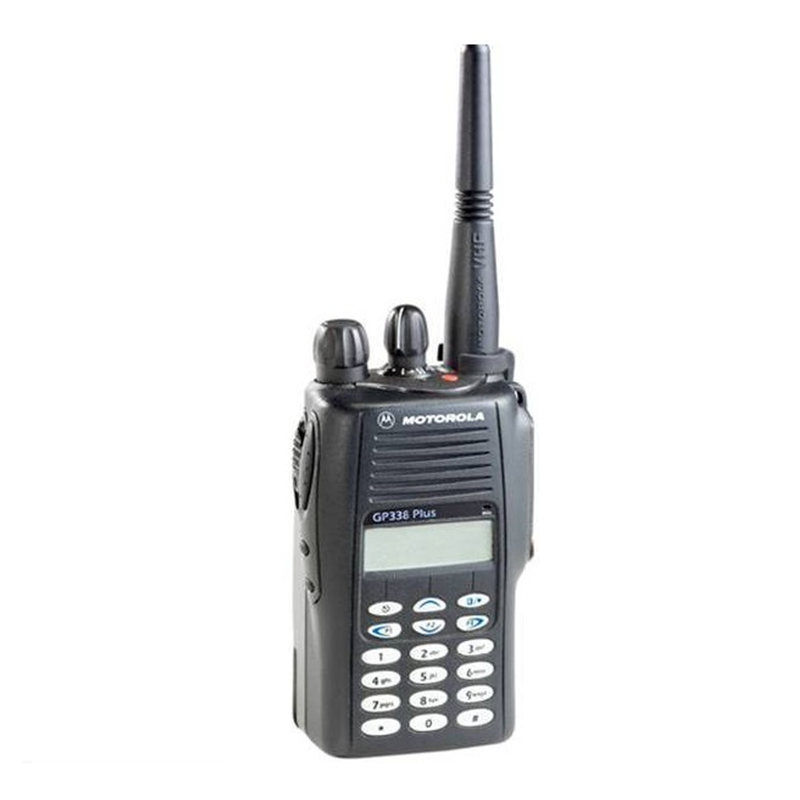

Original New Motorola GP338 PLUS Portable Radio with Keypads

Original price was: $589.00.Current price is: $170.00.

+ Free Shipping

Motorola GP338 PLUS High Performance Walkie Talkie

1. 128 Channels
2. Name & Tone Tagging
3. Voice Selective Call
4. Priority Scan



GP338 PLUS High Performance Walkie Talkie

Common features of GP Plus series:

  • Advanced Audio Technology
  • LED Battery Gauge
  • Switchable RF Power level
  • Repeater/Talkaround Enable/Disable
  • Tight/Normal Squelch
  • Lithium lon Battery Option
  • Programmable Channel Spacing

Special Features of GP338 Plus:

Equipped with a alpha-numeric keypad and display the GP338 Plus Radio offers enhanced functionality in addition to the features of the GP328 Plus Radio series.

128 Channels

Provides up to  a maximum of 128 channels providing greater flexibility in organising different work groups.

14-Character Alpha- Numeric Dot Matrix display

The 14 character alpha-numeric display allows immediate
communication of vital information such as PTT ID, radio
strength indicator and signal strength indicator. In addition,
the user-friendly icons make the information easy to read and
understand. The keypad and display illuminations also provide
the visibility to operate your radio in the dark.

RECEIVED SIGNAL STRENGTH INDICATOR
An easy to read on screen display indicator notifies users
of signal strength in their vicinity.
Name & Tone Tagging

The capability of assigning 8 different ringing tones and
visual caller IDs to 8 specific users/talkgroups enhances
audio and visual caller identification for these 8 groups.

Battery Strength Indicator

Easy to read on-screen LCD display indicator alerts users
on low battery strength.

Menu Keys

The easy to navigate menu keys allow users to select relevant functionalities.

PTT-ID

Every time the PTT button is pressed, it enables the transmission of the caller ID.

Status/Message

This feature enables you to replace frequently used voice calls with status message, saving your valuable communication time.

Call Alert

If your call to a two way radio has no  response, the radio will emit an alert tone until the other party takes action.

Voice Selective Call

The radio users receive a unique individual or group voice message with an alert to indicate that it is a selective call.

Priority Scanning

Allows activity on different channels to be monitored. Any incoming call

General Specification VHF/UHF
Frequency(MHz) 136-174/330-400/403-470/450-527
Channel Capacity 128
Power Supply Provided through rechargeable battery -7.5 V
Dimensions (Radio footprint height excluding knobs)

With Li-ion (Slim) Battery:

With Li-ion (Hicap) Battery:

Height×Width×Depth

101.5mm×55.5m×30.5mm

101.5mm×55.5mm×35.5mm

Weight

With Li-ion (Slim) Battery:

With Li-ion (Hicap) Battery:

250g

270g

Average Battery Life @ 5/5/90Cycle

With Li-ion (Slim) Battery:

With Li-ion (Hicap) Battery:

10 hours at Low Power, 8 hours at High Power

14 hours at Low Power, 11 hours at High Power

Sealing Withstands rain testing per MIL STD 710C /D /E and IP54
Shock and Vibration Protection provided via impact resistant housing exceeding MIL STD 710C.D.E and TIA/EIA 603
Transmitter VHF/UHF
Frequency (MHz) 136-174/330-400/403-470/450-527
Frequency Separation Full bandsplit
Channel Spacing 12.5/20/25kHz
Frequency Stability (-30°C~+60°C, +25°C Ref.) 2.5ppm
Power Output 5W(VHF),4W(UHF)
Modulation Limiting ±2.5 at 12.5kHz, ±4.0 at 20kHz, ±25kHz
FM Hum & Noise -40dB
Conducted/ Radiated Emission -36dBm<1GHz/ -30dBm>1GHz
Modulation FCC Type 12.5kHz 11KOF3E, 25kHz 16KOF3E
Audio Response (from 6 dB/octave pre-emphasis 300-3000Hz) +1 to -3dB
Audio Distortion 3% <5% 1kHz 60% dev
Receiver VHF UHF
Frequency (MHz) 136-174/330-400/403-470/450-527
Frequency Separation Full bandsplit
Sensitivity (12dB SINAD) EIA .35mV .25mV
Intermodulation(EIA) -65dB 70dB
Adjacent Channel Selectivity 60dB @ 12.5kHz, 70dB @ 25kHz
Spurious Rejection 70dB
Rated Audio 500mW
Audio Distortion <5% 3%
Hum & Noise -40dB
Audio Response (300-3000Hz) +1 to -3dB
Conducted Spurious Emission -57dBm < 1GHz, -47dBm> 1GHz, FCC Part 15
Weight 0.9 kg
Dimensions 300 × 400 × 180 mm
Frequency band

136-174 Mhz, 330-400 Mhz, 403-470 Mhz, 450-527 Mhz
